          Metal Processing - Front Facing double Spindle Lathe

          Machinelist: Фрезерный токарный станок с лицевой стороной


          Front Facing double Spindle Lathe

          б / у Токарно-карусельный станок двухсторонний токарный станок DMG MORI NRX 2000


          • KARAT Werkzeugmaschinen GmbH
          • Lily-Braun-Straße 45
          • 40699 Erkrath
          • Deutschland

          • 02104 / 138 59 30
            02104 / 138 59 31
          • info@karat-maschinen.de
            www.karat-maschinen.de
          #1097-10140 · Front Facing double Spindle Lathe

          DMG MORI - NRX 2000 - - 2016 - M730 UM

          Technical details
          Number of tools 10 St. / Rev.︱Recommended work size 150 mm︱spindle bearing diameter - mm︱spindle nose JIS A2-5 ︱Control M730 UM ︱chuck diameter 203 mm︱max. turning passage 180 mm︱turning length 100 mm︱number of spindles 2 ︱distance between spindles 670 mm︱drive capacity - spindle motor 7,5 / 5,5 kW︱total power requirement 32 kVA︱weight of the machine ca. 5,3 t︱dimensions of the machine ca. 5,0 x 3,0 x 2,2 m︱
          Double-Frontspindle - simultaneous Parallel-Machining - Portal-Loading - Tool-Piece-Carriage 14 pos. (Ø 40 - max. 150mm) The machine can be inspected under power!
            Number of tools 10 St. / Rev.
            Recommended work size 150 mm
            spindle bearing diameter - mm
            spindle nose JIS A2-5
            Control M730 UM
            chuck diameter 203 mm
            max. turning passage 180 mm
            turning length 100 mm
            number of spindles 2
            distance between spindles 670 mm
            drive capacity - spindle motor 7,5 / 5,5 kW
            total power requirement 32 kVA
            weight of the machine ca. 5,3 t
            dimensions of the machine ca. 5,0 x 3,0 x 2,2 m
            Description :
            Double-Frontspindle
            - simultaneous Parallel-Machining
            - Portal-Loading
            - Tool-Piece-Carriage 14 pos. (Ø 40 - max. 150mm)

            The machine can be inspected under power!
          Datasheet
          Request / Contact

          Vertical Turret Lathe - Single Column

          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный SCHIESS KE 160 125 A


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020030 · Vertical Turret Lathe - Single Column

          SCHIESS - KE 160 125 A - - NB -

          Technical details
          faceplate diameter 1.600 mm︱swing diameter 1.800 mm︱turning height 1.250 mm︱total power requirement 30 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Stocknumber 1020030 Type of machine VTL Make SCHIESS Type KE 160 125A Faceplate diameter 1600 mm Max. Swing diameter 1800 mm Turning height max. 1250 mm Total Power (KW) 30 Additional information With Digital readout
            faceplate diameter 1.600 mm
            swing diameter 1.800 mm
            turning height 1.250 mm
            total power requirement 30 kW
            Description :
            Stocknumber 1020030
            Type of machine VTL
            Make SCHIESS
            Type KE 160 125A
            Faceplate diameter 1600 mm
            Max. Swing diameter 1800 mm
            Turning height max. 1250 mm
            Total Power (KW) 30


            Additional information
            With Digital readout

          Datasheet
          Request / Contact
          б / у Токарные станки с вертикальной револьверной головкой - одностоечный MORANDO KN17


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020040 · Vertical Turret Lathe - Single Column

          MORANDO - KN17 - - NB -

          Technical details
          faceplate diameter 1.700 mm︱swing diameter 1.900 mm︱turning height 1.350 mm︱total power requirement 62 kW︱weight of the machine ca. 25 t︱dimensions of the machine ca. m︱
          Stocknumber 1020040 Type of machine VTL Make MORANDO Type KN 17 Build in nb Type of control conventional Faceplate diameter 1700 mm Max. Swing diameter 1900 mm Turning height max. 1350 mm Max. workload on the table 10.000 Kg Turning speeds of the faceplate (Rpm) 1,9 - 170 Total Power (KW) 62 Weight 25 ton Additional information including digital read out
            faceplate diameter 1.700 mm
            swing diameter 1.900 mm
            turning height 1.350 mm
            total power requirement 62 kW
            weight of the machine ca. 25 t
            Description :
            Stocknumber 1020040
            Type of machine VTL
            Make MORANDO
            Type KN 17
            Build in nb
            Type of control conventional
            Faceplate diameter 1700 mm
            Max. Swing diameter 1900 mm
            Turning height max. 1350 mm
            Max. workload on the table 10.000 Kg
            Turning speeds of the faceplate (Rpm) 1,9 - 170
            Total Power (KW) 62
            Weight 25 ton


            Additional information
            including digital read out

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный HESSAPP DV 80


          • Hans Klein Werkzeugmaschinenhandel GmbH
          • Im Mühlgut 2-4
          • 77815 Bühl
          • Deutschland

          • 0049 (0) 7223 9617-0
            0049 (0) 7223 58512
          • info@klein-werkzeugmaschinen.de
            www.klein-werkzeugmaschinen.de
          #1052-04095 · Vertical Turret Lathe - Single Column

          HESSAPP - DV 80 - - GÜ 1989 - SIEMENS SINUMERIK 810 T

          Technical details
          swing diameter 800 mm︱turning diameter 800 mm︱turning height 600 mm︱chucking diameter 500 mm︱travel X/Z-axis 600/700 mm︱spindle head DIN 55021 Größe 15 ︱spindle diameter in front bearing 200 mm︱turning speeds 44 ︱turning speed range 8 - 1120 U/min︱main drive 37 kW︱feed speeds max. 1500 mm/min︱rapid traverse 5500 mm/min︱Torque max. 800 kpm︱control SIEMENS SINUMERIK 810 T ︱total power requirement 50 kW︱weight of the machine ca. 13,5 t︱dimensions of machine L x W x H 2,80 x 2,50 x 3,72 m︱dimensions of hydaulic 0,70 x 1,35 x 1,50 m︱dimensions of switch cabinet 1,70 x 0,42 x 2,20 m︱dimensions of motor 1,15 x 1,00 x 1,70 m︱
          4-fold tool turret acc.: chip conveyor
            swing diameter 800 mm
            turning diameter 800 mm
            turning height 600 mm
            chucking diameter 500 mm
            travel X/Z-axis 600/700 mm
            spindle head DIN 55021 Größe 15
            spindle diameter in front bearin. 200 mm
            turning speeds 44
            turning speed range 8 - 1120 U/min
            main drive 37 kW
            feed speeds max. 1500 mm/min
            rapid traverse 5500 mm/min
            Torque max. 800 kpm
            control SIEMENS SINUMERIK 810 T
            total power requirement 50 kW
            weight of the machine ca. 13,5 t
            dimensions of machine L x W x H 2,80 x 2,50 x 3,72 m
            dimensions of hydaulic 0,70 x 1,35 x 1,50 m
            dimensions of switch cabinet 1,70 x 0,42 x 2,20 m
            dimensions of motor 1,15 x 1,00 x 1,70 m
            Description :
            4-fold tool turret
            acc.: chip conveyor


          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный HANKOOK VTC-125E (Bj. 2020)


          • K&S Werkzeugmaschinen oHG
          • Im Bolfeld 2
          • 31711 Luhden
          • Deutschland

          • +49 (0) 5722-99 20 22
            +49 (0) 5722-99 20 29
          • info@ks-werkzeugmaschinen.de
            www.ks-werkzeugmaschinen.de

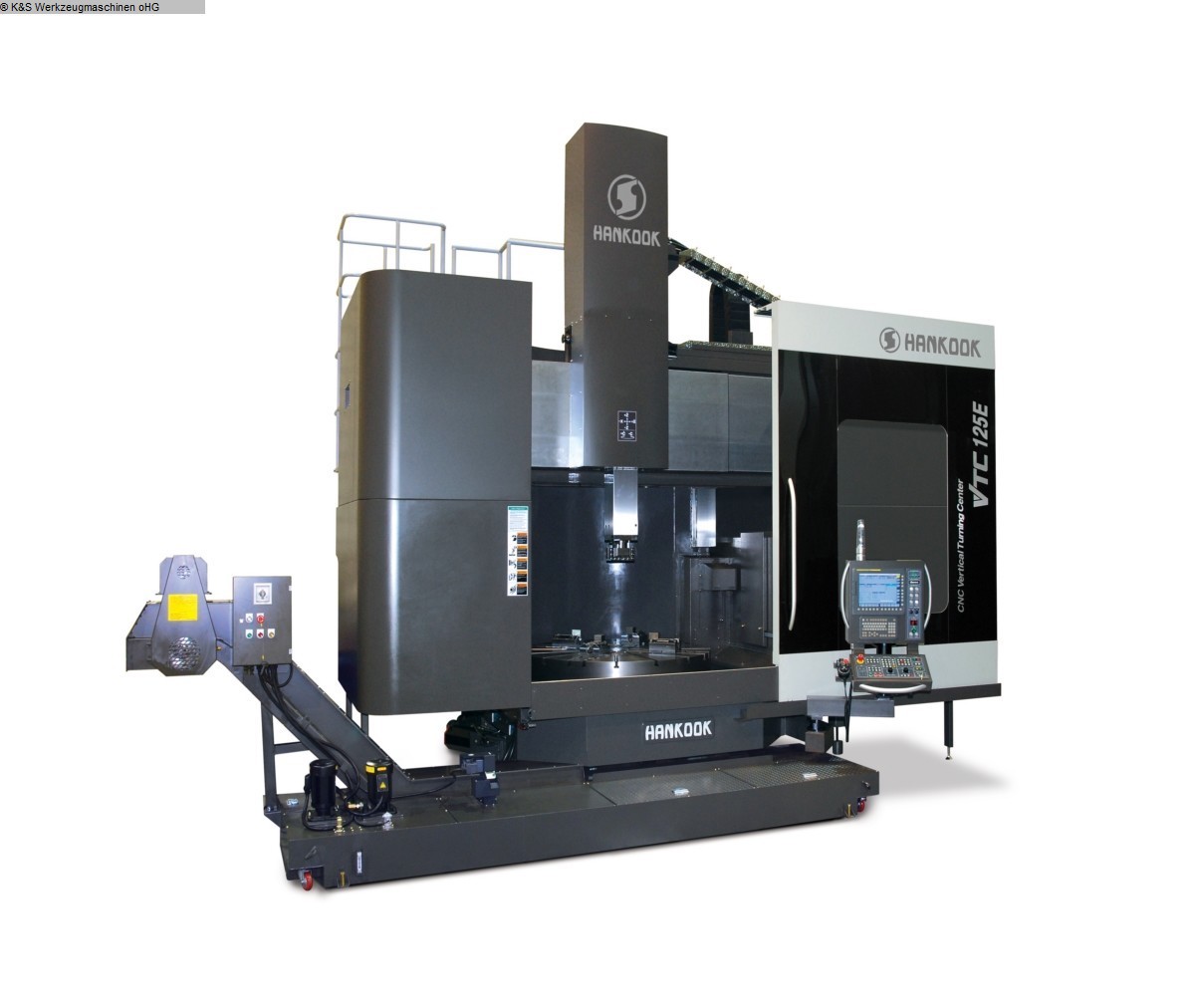

          #2012-290616 · Vertical Turret Lathe - Single Column

          HANKOOK - VTC-125E (Bj. 2020) - - 2020 - Fanuc 32i-A

          Technical details
          faceplate diameter 1.200 mm︱swing diameter 1.400 mm︱max. turning height 1.400 mm︱control Fanuc 32i-A ︱max. torque at faceplate 17885 Nm︱max. cutting force 3.000 kgf︱max. workpiece weight 8.000 kg︱Table: ︱table diameter 1.250 mm︱Tble speed 0.9~360 min/-1︱Gear steps Auto. 2 -step︱C-Axis: ︱Min. index angle 0,001 °︱Cutting feedrate 0~1.200 °/min︱Max. speed 3.333 ︱Ram Head: ︱spindle taper ISO 7/24 No. 50︱Tool size 32 x 32 mm︱Mill spindle speed (VTC) 30~3.000 min/-1︱Max. mill spindle torque (VTC) 235 Nm︱
          Vertical Turret Lathe - Double Column HANKOOK VTC-125E Heavy Duty High Precision Vertical Turning Lathe. - Casting bed with strong ribs, hardend and smoothed box way guide are ensure for high precision and working life.Each guideways for feeding axis is lubricated and attached with Turcite to be reduced wear and friction- resistance. - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up to 50 kg - Axis drive system:Big ball screws coupled with digital servo motors and linear scales guarantee high reproducibility and precision in positioning. - Control system: Fanuc 32 i A - Standard accessories: 4 jaws face plate with 50" diameter Automatic Tool Changer Hydraulik unit Central lubrication Coolant tank Telescopic cover Work light Patrol lamp (Red, Yellow, Green) Levelling block Foundation bolt & nut Operation tool box & tool kits
            faceplate diameter 1.200 mm
            swing diameter 1.400 mm
            max. turning height 1.400 mm
            control Fanuc 32i-A
            max. torque at faceplate 17885 Nm
            max. cutting force 3.000 kgf
            max. workpiece weight 8.000 kg
            table diameter 1.250 mm
            Tble speed 0.9~360 min/-1
            Gear steps Auto. 2 -step
            Min. index angle 0,001 °
            Cutting feedrate 0~1.200 °/min
            Max. speed 3.333
            spindle taper ISO 7/24 No. 50
            Tool size 32 x 32 mm
            Mill spindle speed (VTC) 30~3.000 min/-1
            Max. mill spindle torque (VTC) 235 Nm
            Description :
            Vertical Turret Lathe - Double Column

            HANKOOK VTC-125E

            Heavy Duty High Precision Vertical Turning Lathe.
            - Casting bed with strong ribs, hardend and smoothed box way guide are ensure
            for high precision and working life.Each guideways for feeding axis is
            lubricated and attached with Turcite to be reduced wear and friction-
            resistance.
            - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up
            to 50 kg
            - Axis drive system:Big ball screws coupled with digital servo motors and
            linear scales guarantee high reproducibility and precision in positioning.
            - Control system: Fanuc 32 i A
            - Standard accessories:
            4 jaws face plate with 50" diameter
            Automatic Tool Changer
            Hydraulik unit
            Central lubrication
            Coolant tank
            Telescopic cover
            Work light
            Patrol lamp (Red, Yellow, Green)
            Levelling block
            Foundation bolt & nut
            Operation tool box & tool kits

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный HANKOOK VTC-160E (Bj. 2020)


          • K&S Werkzeugmaschinen oHG
          • Im Bolfeld 2
          • 31711 Luhden
          • Deutschland

          • +49 (0) 5722-99 20 22
            +49 (0) 5722-99 20 29
          • info@ks-werkzeugmaschinen.de
            www.ks-werkzeugmaschinen.de

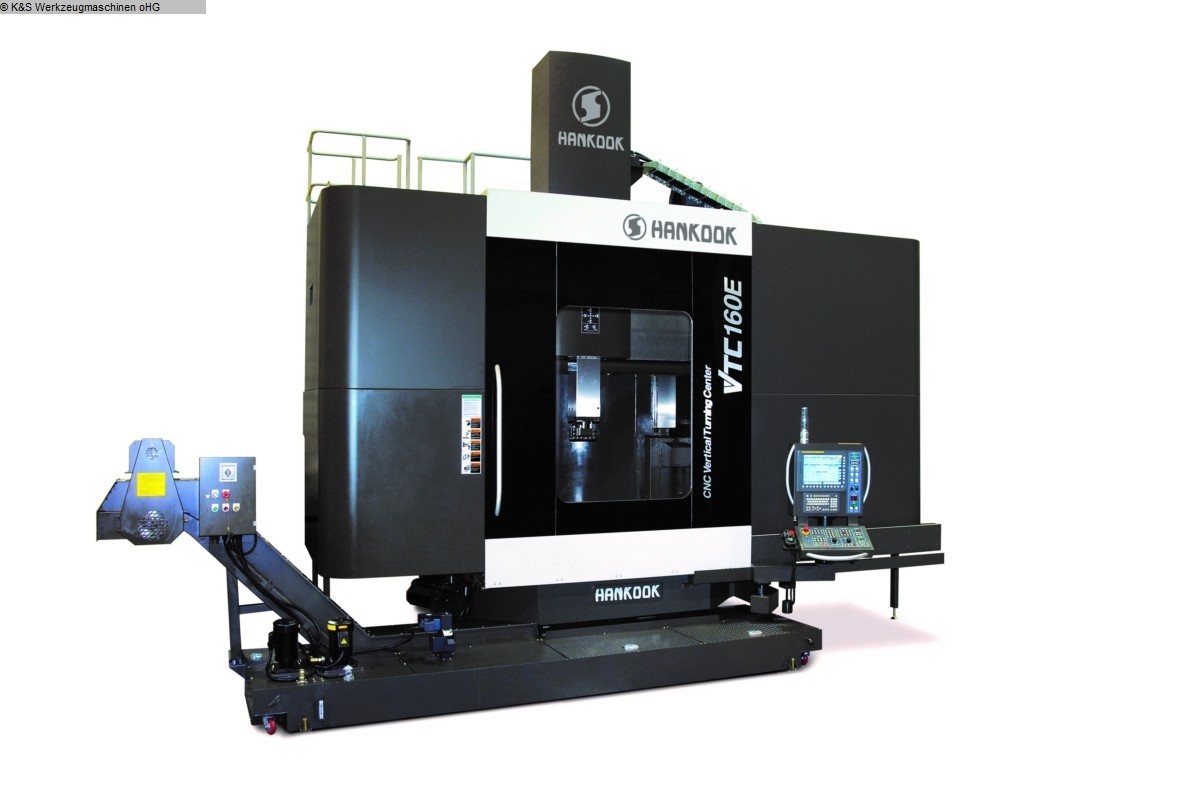

          #2012-300616 · Vertical Turret Lathe - Single Column

          HANKOOK - VTC-160E (Bj. 2020) - - 2020 - Fanuc 32i-B

          Technical details
          faceplate diameter 1.600 mm︱swing diameter 2.000 mm︱max. turning height 1.400 mm︱Control Fanuc 32i-B ︱max. torque at faceplate 23863 Nm︱max. cutting force 3.000 kgf︱max. workpiece weight 10.000 kg︱table: ︱Table diameter 1.600 mm︱Tble speed 0.7~280 min/-1︱Gear steps Auto. 2 -step︱C-Axis: ︱Min. index angle 0,001 °︱Cutting feedrate 0~1.200 °/min︱Max. speed 3.333 min/-1︱turret slide: ︱Spindle taper ISO 7/24 No.50︱Tool size 32x32 mm︱Mill spindle speed (VTC) 30~3.000 min/-1︱Max. mill spindle torque (VTC) 235 Nm︱
          EMO Exhibition Machine for Special Sales Price limited until 21. Sept. 2019 - subject to the goods being unsold Vertical Turret Lathe - Single Column HANKOOK VTC-160E Heavy Duty High Precision Vertical Turning Lathe. - Casting bed with strong ribs, hardend and smoothed box way guide are ensure for high precision and working life.Each guideways for feeding axis is lubricated and attached with Turcite to be reduced wear and friction- resistance. - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up to 50 kg - Axis drive system:Big ball screws coupled with digital servo motors and linear scales guarantee high reproducibility and precision in positioning. - Control system: Fanuc 32 i A - Standard accessories: 4 jaws face plate with 50" diameter Automatic Tool Changer Hydraulik unit Central lubrication Coolant tank Telescopic cover Work light Patrol lamp (Red, Yellow, Green) Levelling block Foundation bolt & nut Operation tool box & tool kits
            faceplate diameter 1.600 mm
            swing diameter 2.000 mm
            max. turning height 1.400 mm
            Control Fanuc 32i-B
            max. torque at faceplate 23863 Nm
            max. cutting force 3.000 kgf
            max. workpiece weight 10.000 kg
            Table diameter 1.600 mm
            Tble speed 0.7~280 min/-1
            Gear steps Auto. 2 -step
            Min. index angle 0,001 °
            Cutting feedrate 0~1.200 °/min
            Max. speed 3.333 min/-1
            Spindle taper ISO 7/24 No.50
            Tool size 32x32 mm
            Mill spindle speed (VTC) 30~3.000 min/-1
            Max. mill spindle torque (VTC) 235 Nm
            Description :
            EMO Exhibition Machine for Special Sales Price limited until 21. Sept. 2019 -
            subject to the goods being unsold

            Vertical Turret Lathe - Single Column

            HANKOOK VTC-160E

            Heavy Duty High Precision Vertical Turning Lathe.
            - Casting bed with strong ribs, hardend and smoothed box way guide are ensure
            for high precision and working life.Each guideways for feeding axis is
            lubricated and attached with Turcite to be reduced wear and friction-
            resistance.
            - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up
            to 50 kg
            - Axis drive system:Big ball screws coupled with digital servo motors and
            linear scales guarantee high reproducibility and precision in positioning.
            - Control system: Fanuc 32 i A
            - Standard accessories:
            4 jaws face plate with 50" diameter
            Automatic Tool Changer
            Hydraulik unit
            Central lubrication
            Coolant tank
            Telescopic cover
            Work light
            Patrol lamp (Red, Yellow, Green)
            Levelling block
            Foundation bolt & nut
            Operation tool box & tool kits
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный HANKOOK VTC-250E (Bj. 2020)


          • K&S Werkzeugmaschinen oHG
          • Im Bolfeld 2
          • 31711 Luhden
          • Deutschland

          • +49 (0) 5722-99 20 22
            +49 (0) 5722-99 20 29
          • info@ks-werkzeugmaschinen.de
            www.ks-werkzeugmaschinen.de

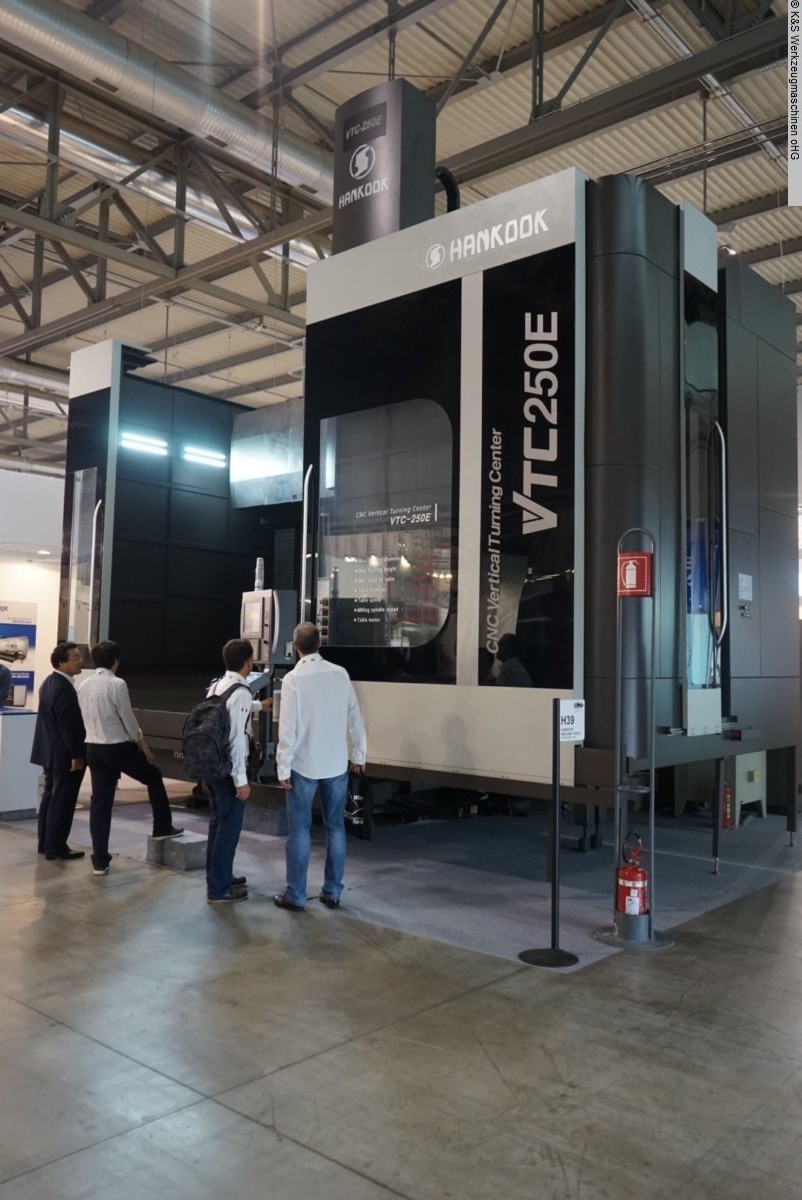

          #2012-3010616 · Vertical Turret Lathe - Single Column

          HANKOOK - VTC-250E (Bj. 2020) - - 2020 - Fanuc 32i-B

          Technical details
          faceplate diameter 2.500 mm︱swing diameter 3.000 mm︱max. turning height 2.000 mm︱control Fanuc 32i-B ︱max. torque at faceplate 50.010 Nm︱max. cutting force 5.000 kgf︱max. workpiece weight 15.000 kg︱Table: ︱Table diameter 2.500 mm︱Tble speed 1~150 min/-1︱transmission ratio Auto. 2 -step︱C-Axis: ︱Min. index angle 0,001 °︱Cutting feedrate 0~900 °/min︱Ram Head: ︱Spindle taper ISO 7/24 No.50︱Tool size 50 mm︱Mill spindle speed (VTC) 15~1.500 min/-1︱Max. mill spindle torque (VTC) 280 Nm︱Ram cross section 280 x 280 mm︱
          Vertical Turret Lathe - Double Column HANKOOK VTC-200E Heavy Duty High Precision Vertical Turning Lathe. - Casting bed with strong ribs, hardend and smoothed box way guide are ensure for high precision and working life.Each guideways for feeding axis is lubricated and attached with Turcite to be reduced wear and friction- resistance. - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up to 50 kg - Axis drive system:Big ball screws coupled with digital servo motors and linear scales guarantee high reproducibility and precision in positioning. - Control system: Fanuc 32 i A - Standard accessories: 4 jaws face plate with 50" diameter Automatic Tool Changer Hydraulik unit Central lubrication Coolant tank Telescopic cover Work light Patrol lamp (Red, Yellow, Green) Levelling block Foundation bolt & nut Operation tool box & tool kits
            faceplate diameter 2.500 mm
            swing diameter 3.000 mm
            max. turning height 2.000 mm
            control Fanuc 32i-B
            max. torque at faceplate 50.010 Nm
            max. cutting force 5.000 kgf
            max. workpiece weight 15.000 kg
            Table diameter 2.500 mm
            Tble speed 1~150 min/-1
            transmission ratio Auto. 2 -step
            Min. index angle 0,001 °
            Cutting feedrate 0~900 °/min
            Spindle taper ISO 7/24 No.50
            Tool size 50 mm
            Mill spindle speed (VTC) 15~1.500 min/-1
            Max. mill spindle torque (VTC) 280 Nm
            Ram cross section 280 x 280 mm
            Description :
            Vertical Turret Lathe - Double Column

            HANKOOK VTC-200E

            Heavy Duty High Precision Vertical Turning Lathe.
            - Casting bed with strong ribs, hardend and smoothed box way guide are ensure
            for high precision and working life.Each guideways for feeding axis is
            lubricated and attached with Turcite to be reduced wear and friction-
            resistance.
            - Tool Changer: 24 slots of tools also 12 for driven tools for a tool weight up
            to 50 kg
            - Axis drive system:Big ball screws coupled with digital servo motors and
            linear scales guarantee high reproducibility and precision in positioning.
            - Control system: Fanuc 32 i A
            - Standard accessories:
            4 jaws face plate with 50" diameter
            Automatic Tool Changer
            Hydraulik unit
            Central lubrication
            Coolant tank
            Telescopic cover
            Work light
            Patrol lamp (Red, Yellow, Green)
            Levelling block
            Foundation bolt & nut
            Operation tool box & tool kits
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный GMW VTM 2000 CNC


          • Karl Günter Wirths GmbH
          • Scharpenberger Strasse 96-98
          • 58256 Ennepetal
          • Deutschland

          • 02333-79050
            02333-790555
          • sales@wirths.net
            www.wirths.net
          #1041-40087 · Vertical Turret Lathe - Single Column

          GMW - VTM 2000 CNC - - 2018 - Fanuc 0i-D

          Technical details
          faceplate diameter 1600 mm︱swing diameter 2000 mm︱turning height 2000 mm︱control Fanuc 0i-D ︱stroke of vertical slide 1400 mm︱tool holder 1 ︱distance face plate/tool carrier 2000 mm︱vertical adjustment of the crossrail 1500 mm︱workpiece weight 12 t︱faceplate turning speed range -stepless- 2 - 250 U/min︱feeds 0 - 2000 mm/min︱rapid traverse 6 m/min︱horizontal adjustment of slide 1850 mm︱adjustment speed of cross-rail 300 mm/min︱total power requirement 55 kW︱weight of the machine ca. 30 t︱dimensions of the machine ca. 6,9 x 7 x 6 m︱
          This machine is a new machine which is used by our sister company GMW Machines as a show room machine. It will be sold with full service and warranty by GMW. Control: Fanuc 0i-D. Machine has safety guard and 12 position ATC.
            faceplate diameter 1600 mm
            swing diameter 2000 mm
            turning height 2000 mm
            control Fanuc 0i-D
            stroke of vertical slide 1400 mm
            tool holder 1
            distance face plate/tool carrier 2000 mm
            vertical adjustment of the cross. 1500 mm
            workpiece weight 12 t
            faceplate turning speed range -s. 2 - 250 U/min
            feeds 0 - 2000 mm/min
            rapid traverse 6 m/min
            horizontal adjustment of slide 1850 mm
            adjustment speed of cross-rail 300 mm/min
            total power requirement 55 kW
            weight of the machine ca. 30 t
            dimensions of the machine ca. 6,9 x 7 x 6 m
            Description :
            This machine is a new machine which is used by our sister company GMW Machines
            as a show room machine. It will be sold with full service and warranty by GMW.
            Control: Fanuc 0i-D. Machine has safety guard and 12 position ATC.
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный DOOSAN Puma VTR 1216


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17999 · Vertical Turret Lathe - Single Column

          DOOSAN - Puma VTR 1216 - - 2016 - FANUC-i

          Technical details
          faceplate diameter 1250 mm︱swing diameter 1600 mm︱turning height 1250 mm︱Control FANUC-i ︱workpiece weight 8000 kg︱distance table - lower edge of ram mm︱x-axis -700 / +1000 mm︱z-axis 1200 mm︱w-axis 800 mm︱table rotation speed 400 U/min︱ram head dimension 260 x 260 mm︱table drive 45 / 37 kW︱total power requirement 120 kVA︱weight of the machine ca. 30 t︱dimensions of the machine ca. 5,3 x 3,9 x 5,58 m︱
          equipped with: - CNC Control Fanuc-i - ATC 12-fach - Coolant - Ball Srews in X and Z - Linear Scales - 5 Tools approx 10700 Power oN Hours and 1450h Cutting Hours
            faceplate diameter 1250 mm
            swing diameter 1600 mm
            turning height 1250 mm
            Control FANUC-i
            workpiece weight 8000 kg
            x-axis -700 / +1000 mm
            z-axis 1200 mm
            w-axis 800 mm
            table rotation speed 400 U/min
            ram head dimension 260 x 260 mm
            table drive 45 / 37 kW
            total power requirement 120 kVA
            weight of the machine ca. 30 t
            dimensions of the machine ca. 5,3 x 3,9 x 5,58 m
            Description :
            equipped with:
            - CNC Control Fanuc-i
            - ATC 12-fach
            - Coolant
            - Ball Srews in X and Z
            - Linear Scales
            - 5 Tools

            approx 10700 Power oN Hours and 1450h Cutting Hours
          Datasheet
          Request / Contact
          б / у Токарные станки с вертикальной револьверной головкой - одностоечный FREMTAS 6FR1.300


          • INTER-PLAST
          • 42-209 Czestochowa

          • +48 343 627 904
            +48 785 198 061
          • iweta@inter-plast.com.pl
            www.inter-plast.com.pl
          #1129-205 · Vertical Turret Lathe - Single Column

          FREMTAS - 6FR1.300 - - 2012 -

          Technical details
          faceplate diameter - mm︱swing diameter - mm︱turning height - mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            faceplate diameter - mm
            swing diameter - mm
            turning height - mm
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный Quqihar Heavy SMVTM 1600


          • Knops Werkzeugmaschinen
          • Ronsdorfer Str. 143
          • 40233 Düsseldorf
          • Deutschland

          • 0211 8793140
            0211 8793134
          • maschinen@knops.de
            www.knops.de
          #1022-E05553 · Vertical Turret Lathe - Single Column

          Quqihar Heavy - SMVTM 1600 - - 2011 - Siemens 840 D

          Technical details
          faceplate diameter 8000 mm︱swing diameter 16000 mm︱turning height 3000 mm︱Control Siemens 840 D ︱ram head - vertical travel 2500 mm︱workpiece weight 250 t︱faceplate speeds: 16 U/min︱ram head - vertical travel 2500 mm︱milling spindle turning speed range: 1000 U/min︱tool taper HSK 100 ︱main drive motor 132 kW︱total power requirement kW︱weight of the machine ca. 420 t︱dimensions of the machine ca. m︱
          - CNC-control SIEMENS 840 D - Boring and milling device - C-axis - Universal angular milling head
            faceplate diameter 8000 mm
            swing diameter 16000 mm
            turning height 3000 mm
            Control Siemens 840 D
            ram head - vertical travel 2500 mm
            workpiece weight 250 t
            faceplate speeds: 16 U/min
            ram head - vertical travel 2500 mm
            milling spindle turning speed ra. 1000 U/min
            tool taper HSK 100
            main drive motor 132 kW
            weight of the machine ca. 420 t
            Description :
            - CNC-control SIEMENS 840 D
            - Boring and milling device
            - C-axis
            - Universal angular milling head
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный TONGTAI TVL-16 DCM


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17757 · Vertical Turret Lathe - Single Column

          TONGTAI - TVL-16 DCM - - 2009 - FANUC 18i TB

          Technical details
          faceplate diameter 1600 mm︱swing diameter 2000 mm︱turning height 1250 mm︱Control FANUC 18i TB ︱spindle turning speed range 250 U/min︱main drive motor 45/37 kW︱Number of tools 20 St.︱turning height 1250 mm︱faceplate turning speed range 5 - 250 U/min︱rapid travel (x and z-axis) 10 m/min︱x-axis -200 / +1150 mm︱z-axis 900 mm︱feed motor 7 kW︱feed 0,001 - 500 mm/min︱ram diameter 220x220 mm︱workpiece weight 8000 kg︱distance table - lower edge spindle 1450 mm︱total power requirement 90 kVA︱weight of the machine ca. 29 t︱dimensions of the machine ca. 5,8 x 4,0 x 5,5 m︱
          equipped with: - CNC control FANUC 18i-TB Manual Guide - C-axis - Tool changer 20-fold - driven tools (11/15KW - 50-2250 rpm) - chip conveyor - 1 table 4-jaw dia 1600mm (hydraulic quick change of the table) - 1 table 3-jaw dia 1600mm (hydraulic quick change of the table)
            faceplate diameter 1600 mm
            swing diameter 2000 mm
            turning height 1250 mm
            Control FANUC 18i TB
            spindle turning speed range 250 U/min
            main drive motor 45/37 kW
            Number of tools 20 St.
            turning height 1250 mm
            faceplate turning speed range 5 - 250 U/min
            rapid travel (x and z-axis) 10 m/min
            x-axis -200 / +1150 mm
            z-axis 900 mm
            feed motor 7 kW
            feed 0,001 - 500 mm/min
            ram diameter 220x220 mm
            workpiece weight 8000 kg
            distance table - lower edge spin. 1450 mm
            total power requirement 90 kVA
            weight of the machine ca. 29 t
            dimensions of the machine ca. 5,8 x 4,0 x 5,5 m
            Description :
            equipped with:
            - CNC control FANUC 18i-TB Manual Guide
            - C-axis
            - Tool changer 20-fold
            - driven tools (11/15KW - 50-2250 rpm)
            - chip conveyor
            - 1 table 4-jaw dia 1600mm (hydraulic quick change of the table)
            - 1 table 3-jaw dia 1600mm (hydraulic quick change of the table)

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный ONSAL SC14


          • Markus Hirsch GmbH
          • Niersweg 84
          • 47877 Willich
          • Deutschland

          • +49 2156 49894 12
            +49 2156 49894 10
          • hirsch@hirsch-maschinen.de
            www.hirsch-maschinen.de
          #1077-02276 · Vertical Turret Lathe - Single Column

          ONSAL - SC14 - - 2008 - Sinumerik 840 D

          Technical details
          faceplate diameter 1320 mm︱swing diameter 1400 mm︱turning height 800 mm︱workpiece weight 6000 kg︱cross rail adjustment 800 mm︱Tools changer for 12 tools ︱chip conveyor ︱coolant tank ︱Control Sinumerik 840 D︱transmission ratio 3 ︱daylight table - ram 950 mm︱slide adjustment 750 mm︱total power requirement 60 kW︱weight of the machine ca. 16 t︱dimensions of the machine ca. 7,5x5,5x4,5 m︱
            faceplate diameter 1320 mm
            swing diameter 1400 mm
            turning height 800 mm
            workpiece weight 6000 kg
            cross rail adjustment 800 mm
            Control Sinumerik 840 D
            transmission ratio 3
            daylight table - ram 950 mm
            slide adjustment 750 mm
            total power requirement 60 kW
            weight of the machine ca. 16 t
            dimensions of the machine ca. 7,5x5,5x4,5 m
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный Wickman Bennett Aeroturn 125-160


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D790 · Vertical Turret Lathe - Single Column

          Wickman Bennett - Aeroturn 125-160 - - 2008 -

          Technical details
          CNC brand Siemens ︱CNC model Sinumerik 840 D ︱Jawplate diameter 1500 mm ø︱Maximum turning diameter 1600 mm ø︱Tool changer 30 ︱Number of pallets 1
          Longitudinal travel of RAM (on ballscrew): 1.000 mm Incl. Spindle for live tools Max. table load: 10.000 kg Max. speed of the table: 430 RPM
            CNC brand Siemens
            CNC model Sinumerik 840 D
            Jawplate diameter 1500 mm ø
            Maximum turning diameter 1600 mm ø
            Tool changer 30
            Number of pallets 1
            Description :
            Longitudinal travel of RAM (on ballscrew): 1.000 mm
            Incl. Spindle for live tools
            Max. table load: 10.000 kg
            Max. speed of the table: 430 RPM
          Datasheet
          Request / Contact
          б / у Токарные станки с вертикальной револьверной головкой - Single Column VTC 8080


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D342 · Vertical Turret Lathe - Single Column

          VTC - 8080 - - 2008 -

          Technical details
          CNC brand Siemens ︱CNC model 840D ︱Jawplate diameter 630 mm ø︱Maximum turning diameter 800 mm ø︱Turning height 800 mm︱Rapid traverse X-Z 10/15 m/min︱Max torque 2200 Nm︱Revolutions 50 - 1000 RPM︱Tool changer 8
            CNC brand Siemens
            CNC model 840D
            Jawplate diameter 630 mm ø
            Maximum turning diameter 800 mm ø
            Turning height 800 mm
            Rapid traverse X-Z 10/15 m/min
            Max torque 2200 Nm
            Revolutions 50 - 1000 RPM
            Tool changer 8
            Description :

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный GTC 20090


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020037 · Vertical Turret Lathe - Single Column

          GTC - 20090 - - 2007 - siemens 810D

          Technical details
          faceplate diameter 1.600 mm︱swing diameter 2.000 mm︱turning height 1.600 mm︱control siemens 810D ︱total power requirement 55 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Stocknumber 1020037 Type of machine CNC VTL Make GTC Type 20090 Build in 2007 Type of control CNC Siemens 810D Faceplate diameter 1600 mm Max. Swing diameter 2000 mm Turning height max. 1600 mm Turning speeds of the faceplate (Rpm) 250 Total Power (KW) 55 Additional information incl ATC for 12 tools
            faceplate diameter 1.600 mm
            swing diameter 2.000 mm
            turning height 1.600 mm
            control siemens 810D
            total power requirement 55 kW
            Description :
            Stocknumber 1020037
            Type of machine CNC VTL
            Make GTC
            Type 20090
            Build in 2007
            Type of control CNC Siemens 810D
            Faceplate diameter 1600 mm
            Max. Swing diameter 2000 mm
            Turning height max. 1600 mm
            Turning speeds of the faceplate (Rpm) 250
            Total Power (KW) 55


            Additional information
            incl ATC for 12 tools

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный GTC 20090


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D612 · Vertical Turret Lathe - Single Column

          GTC - 20090 - - 2007 -

          Technical details
          CNC brand Siemens ︱CNC model 810 D ︱Jawplate diameter 1600 mm ø︱Maximum turning diameter 2000 mm ø︱Turning height 1600 mm︱Max torque 20000 Nm︱Tool changer 12 ︱Engine 55 kW︱4-jaw chuck 1600 mm ø︱
            CNC brand Siemens
            CNC model 810 D
            Jawplate diameter 1600 mm ø
            Maximum turning diameter 2000 mm ø
            Turning height 1600 mm
            Max torque 20000 Nm
            Tool changer 12
            Engine 55 kW
            4-jaw chuck 1600 mm ø
            Description :

          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный OKUMA VTM 200


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17515 · Vertical Turret Lathe - Single Column

          OKUMA - VTM 200 - - 2007 - OSP-P200L

          Technical details
          faceplate diameter 2000 mm︱swing diameter 2400 mm︱turning height 1200 mm︱Control OSP-P200L ︱tool piece magazine with 36 tools︱workpiece weight 7000 kg︱spindle nose dia. 380 mm︱diameter of spindle flange dia. 260 mm︱spindle speed: 5 - 250 Upm︱spindle motor 30/22 kW︱x-axis 1600 mm︱z-axis 1200 mm︱total power requirement ca. 65 kVA︱weight of the machine ca. - t︱
          Vertical Turret Lathe with : - CNC Control OSP P200L - C-Axis (0,001°) - ATC with 36 positions Machine was little used and is in top condition
            faceplate diameter 2000 mm
            swing diameter 2400 mm
            turning height 1200 mm
            Control OSP-P200L
            tool piece magazine with 36 tools
            workpiece weight 7000 kg
            spindle nose dia. 380 mm
            diameter of spindle flange dia. 260 mm
            spindle speed: 5 - 250 Upm
            spindle motor 30/22 kW
            x-axis 1600 mm
            z-axis 1200 mm
            total power requirement ca. 65 kVA
            weight of the machine ca. - t
            Description :
            Vertical Turret Lathe with :
            - CNC Control OSP P200L
            - C-Axis (0,001°)
            - ATC with 36 positions

            Machine was little used and is in top condition
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный HANKOOK VLC 30 / 70


          • Intermach BV
          • Lange Voor 71
          • 8316BC Marknesse
          • Niederlande

          • +31 (0)527 201323
            +31 (0)527 203038
          • info@intermach.nl
            www.intermach.nl
          #2050-1020041 · Vertical Turret Lathe - Single Column

          HANKOOK - VLC 30/70 - - 2004 - FANUC 18i-TB

          Technical details
          faceplate diameter 3.000 mm︱swing diameter 7.000 mm︱turning height 3.000 mm︱Control FANUC 18i-TB ︱total power requirement 60/75 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            faceplate diameter 3.000 mm
            swing diameter 7.000 mm
            turning height 3.000 mm
            Control FANUC 18i-TB
            total power requirement 60/75 kW
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - Single Column Hankook VLC 30/70


          • Jansen Machinehandel BV
          • Bredaseweg 210
          • 4873 LA Etten-leur
          • Niederlande

          • +31 (0) 76 5015750
            +31 (0) 76 5015750
          • info@jansenmachinehandel.nl
            www.jansenmachinehandel.nl
          #2049-D736 · Vertical Turret Lathe - Single Column

          Hankook - VLC 30/70 - - 2004 -

          Technical details
          CNC brand Fanuc ︱CNC model 18i-TB ︱Jawplate diameter 3000 mm ø︱Maximum turning diameter 7000 mm ø︱Turning height 3000 mm︱X 2225 mm︱Z 1600 mm︱W 2000 mm︱Tool changer 24 ︱Maximum table load 30000 kg︱Machine weight 88500 kg︱
          This machine was overhauled in 2016 and is in top condition Including Spindle for driven tools C-axis attachment Max C-axis speed: 0 - 0.5 rpm Motor C axis: 9 kW Power supplies X / Z: 0.01 - 500 mm / min RPM table: 1 - 80 rpm
            CNC brand Fanuc
            CNC model 18i-TB
            Jawplate diameter 3000 mm ø
            Maximum turning diameter 7000 mm ø
            Turning height 3000 mm
            X 2225 mm
            Z 1600 mm
            W 2000 mm
            Tool changer 24
            Maximum table load 30000 kg
            Machine weight 88500 kg
            Description :
            This machine was overhauled in 2016 and is in top condition
            Including Spindle for driven tools
            C-axis attachment
            Max C-axis speed: 0 - 0.5 rpm
            Motor C axis: 9 kW
            Power supplies X / Z: 0.01 - 500 mm / min
            RPM table: 1 - 80 rpm
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный SCHIESS - SEDIN Vertiturn V2R CNC


          • Knops Werkzeugmaschinen
          • Ronsdorfer Str. 143
          • 40233 Düsseldorf
          • Deutschland

          • 0211 8793140
            0211 8793134
          • maschinen@knops.de
            www.knops.de
          #1022-E05554 · Vertical Turret Lathe - Single Column

          SCHIESS - SEDIN - Vertiturn V2R CNC - - 2000 -

          Technical details
          faceplate diameter 1400 mm︱swing diameter 1600 mm︱turning height 1000 mm︱workpiece weight max. 10 t︱main drive motor 60 kW︱faceplate turning speed range 0,315 - 284 U/min︱transmission ratio 2 ︱cross-rail support vertical 700 mm︱cross-rail support horizontal 950 mm︱cross rail adjustment 660 mm︱feed speeds 0,1 - 2000 mm/min︱weight of the machine ca. 19,5 t︱dimensions of the machine ca. 5,0 x 4,3 x 5,4 m︱
          * CNC-control SIEMENS Sinumerik 840 C * 5-pos. turret head with several tool holders. * hydrostatic table bearing * AC-main drive motor SIEMENS * AC-feed drive motors SIEMENS * coolant equipment * hydraulic-oil cooler (refrigerating) SCHIMPKE * electrical cabinet VOSSWINKEL * machine housing complete * swarf conveyor
            faceplate diameter 1400 mm
            swing diameter 1600 mm
            turning height 1000 mm
            workpiece weight max. 10 t
            main drive motor 60 kW
            faceplate turning speed range 0,315 - 284 U/min
            transmission ratio 2
            cross-rail support vertical 700 mm
            cross-rail support horizontal 950 mm
            cross rail adjustment 660 mm
            feed speeds 0,1 - 2000 mm/min
            weight of the machine ca. 19,5 t
            dimensions of the machine ca. 5,0 x 4,3 x 5,4 m
            Description :
            * CNC-control SIEMENS Sinumerik 840 C
            * 5-pos. turret head with several tool holders.
            * hydrostatic table bearing
            * AC-main drive motor SIEMENS
            * AC-feed drive motors SIEMENS
            * coolant equipment
            * hydraulic-oil cooler (refrigerating) SCHIMPKE
            * electrical cabinet VOSSWINKEL
            * machine housing complete
            * swarf conveyor
          Datasheet
          Request / Contact
          б / у Токарные станки с вертикальной револьверной головкой - Single Column HUNGER U305 CE


          • SKM Industriemaschinen
          • Röntgenstr. 3
          • 89264 Weißenhorn
          • Deutschland

          • +49 (0) 7309 954 986 0
            +49 (0) 7309 954 986 1
          • info@skm-maschinen.de
            www.skm-maschinen.de
          #2032-1242 · Vertical Turret Lathe - Single Column

          HUNGER - U305 CE - - 1999 -

          Technical details
          turning height 350 mm︱turning diameter 1210 mm︱faceplate diameter s mm︱max. wheel diameter 1400 mm︱min. dia. 150 mm︱grinding diameter - min. 260 mm︱max. turning diameter 1210 mm︱vertical movement 730 mm ︱horizontal adjustment 520 mm︱turning speeds 20 - 120 U/min︱turning speed range - grinding spindle 4500 U/min︱feed per revolution 0,0-0,4 mm ︱feed per revolution 0,0 - 0,4 mm ︱total power requirement 2,6 kW︱weight of the machine ca. 0,9 t︱dimensions of the machine ca. 1,75 x 0,77 x 1,72 m︱
            turning height 350 mm
            turning diameter 1210 mm
            faceplate diameter s mm
            max. wheel diameter 1400 mm
            min. dia. 150 mm
            grinding diameter - min. 260 mm
            max. turning diameter 1210 mm
            vertical movement 730 mm
            horizontal adjustment 520 mm
            turning speeds 20 - 120 U/min
            turning speed range - grinding s. 4500 U/min
            feed per revolution 0,0-0,4 mm
            feed per revolution 0,0 - 0,4 mm
            total power requirement 2,6 kW
            weight of the machine ca. 0,9 t
            dimensions of the machine ca. 1,75 x 0,77 x 1,72 m
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный SCHIESS-MOWEG KSM 140


          • Leyendecker & Hollmann GmbH
          • Konrad-Zuse-Str. 5
          • 40789 Monheim
          • Deutschland

          • +49 (2173) 22 55 0
            +49 (2173) 25627
          • info@LHmachine.com
            www.LHmachine.com
          #1083-02905 · Vertical Turret Lathe - Single Column

          SCHIESS-MOWEG - KSM 140 - - 1996 -

          Technical details
          faceplate diameter 1400 mm︱swing diameter 1600 mm︱turning height ca. 1100 mm︱max. workpiece weight 6300 kg︱cross rail - adjustment 660 mm︱faceplate speeds: I: 1-65,5 U/min︱faceplate speeds: II: 4-250 U/min︱max. torque 20000 Nm︱feed 0,025-10 mm/U.︱swivelling of ram 45 °︱total power requirement 71 kW︱weight of the machine ca. 21,5 t︱total power requirement 71 kW︱weight of the machine ca. ca. 21,5 t︱
          Equipment / Accessories: - digital read out - various tool holders - documentation
            faceplate diameter 1400 mm
            swing diameter 1600 mm
            turning height ca. 1100 mm
            max. workpiece weight 6300 kg
            cross rail - adjustment 660 mm
            faceplate speeds: I: 1-65,5 U/min
            faceplate speeds: II: 4-250 U/min
            max. torque 20000 Nm
            feed 0,025-10 mm/U.
            swivelling of ram 45 °
            total power requirement 71 kW
            weight of the machine ca. 21,5 t
            total power requirement 71 kW
            weight of the machine ca. ca. 21,5 t
            Description :
            Equipment / Accessories:
            - digital read out
            - various tool holders
            - documentation

          34.000 €
          Datasheet
          Request / Contact
          б / у Токарные станки Вертикальный токарно-револьверный станок - одностоечный SCHIESS-MOWEG KSM 140


          • Emuk Werkzeugmaschinen GmbH
          • Siemensstrasse 24
          • 76316 Malsch
          • Deutschland

          • +49 (0) 7246 1392
            +49 (0) 7246 1394
          • info@emuk.de
            www.emuk.de
          #1058-19062 · Vertical Turret Lathe - Single Column

          SCHIESS-MOWEG - KSM 140 - - 1996 -

          Technical details
          faceplate diameter 1400 mm︱swing diameter 1600 mm︱turning height 1100 mm︱total power requirement 71 kW︱weight of the machine ca. 21,5 t︱dimensions of the machine ca. m︱
            faceplate diameter 1400 mm
            swing diameter 1600 mm
            turning height 1100 mm
            total power requirement 71 kW
            weight of the machine ca. 21,5 t
          Datasheet
          Request / Contact

          TOP Manufacturer:

          DMG MORI -
