turning diameter over bed 800 mm︱turning length 2000 mm︱centre height 400 mm︱turning speeds 1450 U/min︱weight 7600 kg︱Power 15 KW︱required space 5,66 x 1,16 x 1,46 m︱

---

turning diameter over bed 500-600 mm︱turning diameter over slide rest / mm︱turning length 2800 mm︱bore diameter 130 mm︱total power requirement / kW︱weight of the machine ca. 5,25 t︱required space / m︱

---

turning diameter over bed 300 mm︱turning diameter over slide rest / mm︱turning length 2600 mm︱bore diameter 60 mm︱total power requirement / kW︱weight of the machine ca. 2,55 t︱

---

turning diameter over bed 640 mm︱turning length ca. 4300 mm︱centre height 320 mm︱total power requirement 12 kW︱spindle passage 80 mm︱required space 6,5 x 1,55 x 1,5 m︱

---

Height of centres 255 mm︱turning diameter over bed 520 mm︱turning diameter over slide rest 300 mm︱turning length 1500 mm︱bed width 400 mm︱spindle bore 62 mm︱total power requirement 7,5 kW︱turning speeds 1400 U/min︱faceplate diameter 500 mm︱weight of the machine ca. ca. 2,85 t︱required space 3,8 x 1,4 m︱

---

turning diameter over bed 500 mm︱turning diameter over slide rest 280 mm︱turning length 1000 mm︱centre height 250 mm︱turning speeds 2500 U/min︱total power requirement 9 kW︱weight of the machine ca. 1,9 t︱required space 2,5 x 1,25 x 1,6 m︱

---

turning diameter over bed 870 mm︱turning length 4000 mm︱centre height 450 mm︱spindle passage 85 mm︱turning speeds 11,2 - 2240 U/min︱bed width 545 mm︱weight 6600 kg︱chucking diameter 700 mm︱required space 5,66 x 1,16 x 1,46 m︱

---

turning diameter over bed 655 mm︱turning diameter over slide rest 390 mm︱turning length 1250 mm︱spindle bore 82 mm︱spindle turning speed range 9-1120 U/min︱feeds 0,049-3 mm/U︱total power requirement 12 kW︱weight of the machine ca. 5,2 t︱required space 3,5 x 1,9 x 1,7 m m︱

---

turning diameter over bed 840 mm︱turning length ca. 4300 mm︱width 1900 mm︱height 1900 mm︱length 7900 mm︱required space 7,9 x 1,9 x 1,9 m︱

---

- Spindle bore 125mm

turning diameter over bed 450 mm︱turning length 1000 mm︱turning diameter over slide 232 mm︱engine output 10 PS︱turning speeds 31 - 1600 U/min︱weight of the machine ca. 1,7 t︱required space 2,50 x 1,30 x 1,60 m︱

---

centre height 235 mm︱turning diameter 470 mm︱turning speeds 2700 U/min︱turning length 1500 mm︱

---

inkl. Zubehör (siehe Bilder)

turning diameter over bed 590 mm︱centre distance 4000 mm︱turning diameter over slide rest / mm︱total power requirement / kW︱weight of the machine ca. / t︱required space / m︱

---

turning diameter over slide rest / mm︱centre distance 1500 mm︱copying travel longitudinal / mm︱

---

Center height over flat track: 255mm Center height above prism upper edge: 237mm Turning diameter over bed: 520mm Turning diameter over the short lower slide: 300mm Turning diameter over the continuous lower slide: 270mm Faceplate diameter: 500mm Main spindle rotation 18 over wheels: 9 - 450 rpm Main spindle rotation 12 via belt: 140 - 1800 rpm Power requirement: 7.5 - 15kW Feeds Longitudinal normal: 0.33 - 2.0 mm / rev Longitudinal fine: 0.007 - 0.03 mm / rev Plan normal: 0.012 - 0.9 mm / rev Plan fine: 0.003 - 0.011 mm / rev Bed width: 403mm Spindle bore: 62mm

turning diameter / mm︱turning length / mm︱control SINUMERIK 840C ︱greates pass round over bed 750 mm︱swing diameter over bed slide 670 mm︱

---

VOEST-ALPINE STEINEL CNC lathe M70 x 3000 with boring bar changer Technical data/technical data: Swing diameter over bed: 750mm Swing diameter over slide: 670mm Max. flight circle turning tools: 730mm Double cross slide top 6 axes Sleigh path lengthwise / Z1: 3670mm Left carriage / X: 660 mm Right carriage / E: 660 mm Cross slide bottom 2 axes Sleigh path lengthways: 2450mm Sledge path plan: 250mm Center width/distance :3000mm Spindle/spindle: Max. speed: 3150 min-1 Spindle diameter v. Bearing: 160mm Bore diameter Spindle: 106mm Spindle head: DIN 55026 A 11 Main drive Total drive power: 63 kW Max. torque spindle: 2385 Nm Speed ??range: 10 -3150 1/min Feed force: 30000 N longitudinal/; 31500 N plan Web feed: 5000 mm/min Speed: 10000mm/min Dimensions: Length: 4665mm (machine bed) 7575mm with chip conveyor Width: 4315mm Height: 3500mm Total weight approx.: 28000kg General: Height of the turning spindle above the floor: 1233mm Height of the turning spindle above the lower edge of the machine: 1165mm Noise without processing and feed: dB(A) 80 Furnishing: -Disc turret 9+1 switching positions -Flat table turret 3+1 switching positions -Milling and drilling equipment drum mag. for drilling and milling tools (ATC) -VDI recordings/attach. VDI 3425 -4-fold revolver with quill - Full clamping cylinder OKRJ 200 from FORKARDT - Three-jaw chuck KNCS 400 92 3A11, SMW - Bezel SLU-A5-ZS-100 V, SMW company - Chip conveyor discharge height 1133 mm, width 450 mm

bed slide 520 mm︱turning length 2000 mm︱control Siemens Sinumerik 805 ︱

---

Technical details Max. Circulation Ø over bed: 570 mm Max. Circulation Ø over cross slide: 365 mm Displacement of the cross slide (X-axis): 345 mm Displacement of the top support: 125 mm Center height over flat track: 280 mm bed width: 360 mm bed slide - guide length: 520 mm cross slide - width: 225 mm cross slide - length: 680 mm top support - width: 140 mm turning tool cross section according to DIN770 h x w: 32 x 25 mm turning length: 2000 mm Main spindle spindle head DIN 55027: size 8 spindle Ø in front bearing: 100 mm spindle bore: 62 mm inner taper of the main spindle: metr. 70 Main drive Infinitely variable three-phase motor (AC motor) Drive power 100% / 60 % ED: 15 / 19 kW Torque 100% / 60 % ED: 1800/ 1400 Nm Total speed range: 3 - 2500 1/min Speed range gear stage 1: 3 - 500 1/min Speed range gear stage 2: 15 - 2500 1/min Speed influence (via potentiometer): 50 - 120 %. Feed drives Three-phase servo drives (AC motor) Feed range planar and longitudinal: 0.01 - 50 mm/rev. Max. Feed speed planar (rapid traverse): 5 m/min conventional rapid traverse planar: 2.5 m/min Max. Feed rate longitudinal (rapid traverse): 10 m/min conventional rapid traverse longitudinal: 5 m/min feed force plane: 7100 N feed force longitudinal: 12500 N Feed rate control (via potentiometer): 0 - 120 Tailstock quill Ø: 80 mm quill stroke: 190 mm Inner taper of the quill: MK 5 Thread pitches metric thread (longitudinal, plane and tapered): 01 - 400 mm Permissible workpiece weights flying, max. center of gravity distance 200 mm from front edge of clamping device: 400 kg with tailstock: 1000 kg with 1 steady rest: 1300 kg further equipment 3-jaw chuck: FORKARDT F250 with one set of block jaws tool holder system Multifix size C including 3 change holders CD 32 150 one fixed roller setting vice with 3 quills Ø - range: approx. 20 to approx. 320mm coolant device available chip tray available (no chip conveyor). Weight: approx. 4 tons Space requirement without control cabinet (length x width x height): approx. 4 m x 1.8 m x 1.8 m control cabinet (length x width x height): approx. 1.2 m x 0.42 m x 1.4 m The technical specifications have been taken from the machine documentation. We reserve the right, subject to intermediate sales and errors in the technical data, in accordance with our General Terms and Conditions.

turning diameter / mm︱turning length / mm︱clamping length / mm︱

---

Technical data Centre height above bed: 1,050 mm Centre width: 10,000 mm Faceplate diameter: 1,300 mm Face plate rim diameter: 1,430 mm Faceplate clamping range: 200 - 900 mm Largest diameter over support: 1,400 mm Largest workpiece weight to be supported between centres: 40 t Bed width over guideways: 2,350 mm Bed length including headstock: 15,500 mm Diameter of main spindle in front bearing: 560 mm Diameter of the tailstock quill: 480 mm Speed range of the face plate: 1 - 80 rpm Speed steps: 4 Range of longitudinal and face feeds: 0.8 - 120 mm/min. Adjustment range of the toolholders in longitudinal direction in the support upper part: 400 - 1,000 mm Maximum plunge depth: 550 mm Rapid movement of the supports on the bed: 2,000 mm/min. Separate creep speed: 4 mm/min. Main drive motor power: 200 hp Engine speeds: 750 - 2,250 rpm. Torque at the faceplate: 20,000 mkp Full user speed: 6.1 rpm. Maximum cutting force per support: 18,000 kp Support range: 250 - 600 mm Max. Load capacity per steady rest: 10 t Number of steady rests and width in workpiece area: 2 x 90 mm 1 x 100 mm 1 x 120 mm Motors Main drive - one DC motor 200 hp, B3, P21, with filter and speeds 750 - 2,400 rpm - four gears with fine adjustment - two motors for block adjustment and lubrication, power of motors 0.3 - 0.5 hp - two fault monitors HMV 1 - 10 for lubrication monitoring - one fluorescent tube 40 W 1.20 m for headstock - two indicating instruments (speed and ammeter) For two supports - two DC motors - Speeds in feed 10 - 1,500 rpm. - Speeds in rapid traverse 5,000 rpm = 2,000 mm / min. 4,500 rpm = 1,790 mm / min. - with feed for creep feed 50 rpm = 4 mm / min. - one motor each for feed and rapid traverse - feed clutch type Stromag EKD 40 = 2.58 A - one brake clutch ZF EK 20 dB - Rapid traverse and feed clutch are switched against each other at standstill. - one motor for circulating lubrication and gear clamping with main switch "ON", power 180 W (monitored by pressure switch) - one motor for pulse lubrication and clamping, power approx. 55 W - Impulse lubrication via time "ON" and via pressure switch "OFF" (time lubrication make Vogel) - two magnetic slides "ON" via direction command - in copy mode both solenoid slides "ON - Clamping: two solenoid slides for longitudinal and face adjustment - Pressure switch for clamping pressure monitoring - Magnetic slide "ON" = clamping - Command "ON" via selector switch - Oil level control via float switch Tailstock - one motor for longitudinal adjustment N = 7.5 HP, n = 1,500 rpm, type B5 - one motor for lubrication N = 40 W with a pressure and float switch, switching on via cam - one motor for clamping N = 0.45 W - one contact manometer with a K

faceplate diameter 1000 mm︱turning diameter over slide rest / mm︱turning length / mm︱turning speeds 400 U/min︱total power requirement / kW︱weight of the machine ca. / t︱required space / m︱

---

turning length / mm︱turning diameter over plate // mm︱faceplate diameter / mm︱

---

Faceplate diameter: 3500mm Center height over plate: 1320mm Turning diameter over plate: 2600mm Turning diameter in the pit: 3600mm Turning diameter over bed: 1300mm Turning length: about 2400mm Max. workpiece weight: 22000kg Max. torque on the faceplate: 5000 mkg Faceplate ring gear pitch circle diameter: 1900mm Main spindle bore: 120mm range of speeds normal: 0.71-35.5 rpm increased: 1-50 rpm increased: 1.4-71 rpm Drive power: 38kW

turning length 2000 mm︱turning diameter 1200 mm︱centre height 600 mm︱control Siemens Sinumerik 840D ︱

---

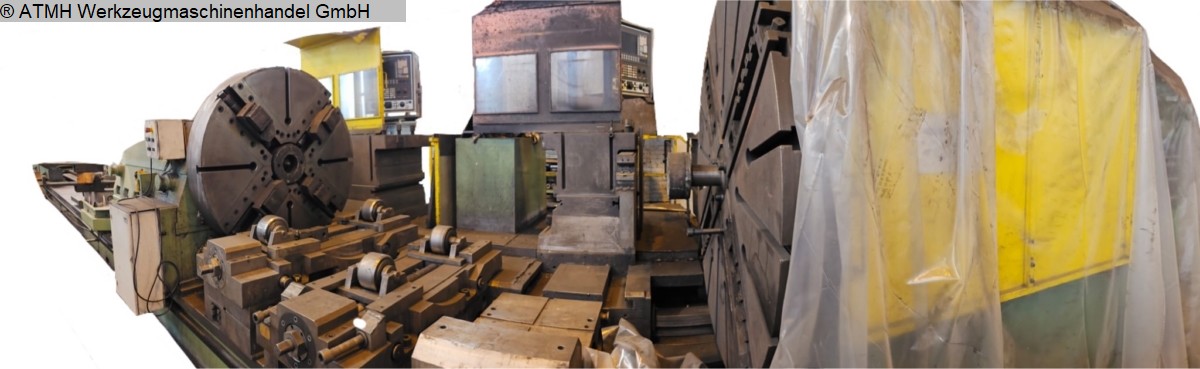

turning diameter over bed 2000 mm︱turning diameter over slide rest 1600 mm︱turning length 22.000 mm︱turning diameter 2000 mm︱turning length 20.500 mm︱control SIEMENS SINUMERIK 840 D ︱workpiece weight 70.000 KG︱total power requirement Hauptmotor 110 kW︱

---

turning diameter 420 mm︱turning length 1200 mm︱control Fanuc ︱bore diameter 60 mm︱

---

turning length 500 mm︱swing diameter over bed slide / mm︱centre height 155 mm︱turning diameter 310 mm︱spindle passage ca. 45 mm︱weight of the machine ca. 565 kg︱required space 1,45 x 0,8 x 1,20 m︱

---

faceplate diameter 3200 mm︱swing diameter 3500 mm︱turning height 2200 mm︱range L-W-H 7730 x 6240 x 6700 mm︱control Typ 840 D sl ︱voltage 3 x 400 V︱frequency 50 Hz︱turning speeds 0,8 - 40 U/min︱max. turning diameter 3500 mm︱total power requirement 51 kW︱weight of the machine ca. 86 t︱

---

Technical specifications Machine type: CNC vertical lathe Manufacturer: Rafamet Year of manufacture: 1973 conventional General overhaul with control retrofit 2010 Control upgrade 2016 Control: Siemens 840 D Sl Condition: very good faceplate Turning diameter of the faceplate 3,200 mm Number of rotation stages of the face plate 3 (infinitely variable) Speed ??ranges of the faceplate 0.8 - 40 rpm Level I 0.8 – 3 rpm Level II 0.8 - 11 rpm Level III 0.8 – 40 rpm processing of workpieces Max. turning diameter 3,500 mm Max. turning height of the workpieces above the faceplate 2,200 mm vertical supports Smallest axis distance between the vertical supports 470 mm Largest ram travel of the left vertical support 985 mm Largest ram travel of the right vertical support 985 mm Axis Feeds - Infinitely variable feed Max.: X1.2 3m/min max.: z1.2 2.5 m/min Plunger cannot be pivoted Support — crossbar Rapid feed of the cross beam 600 mm/min Larger distance of the cross beam to the faceplate 2,300 mm load sizes +Permissible turning force when turning workpieces with a turning diameter of 2,000 mm and a turning speed of 20 m/min. 8,000kg +Largest chip cross-section for workpieces made of steel Fz = 50 kg/mm² at a turning speed of 20 m/min for all supports 45 mm² +Largest chip cross-section for workpieces made of steel Fz = 50 kg/mm² at a rotation speed of 20 m/min for a vertical support with max. plunger length 985 mm 2.5 mm² +Largest chip cross-section for cast iron workpieces HB = 160 kg/mm² at a turning speed of 20 m/min for all supports 120 mm² +Largest chip cross-section for cast iron workpieces HB = 160 kg/mm² at a rotation speed of 20 m/min for a vertical support with max. plunger length 985 mm 22.5 mm² +Largest permitted workpiece weight at 0.8 - 3.15 rpm 17,500 kg +Largest permitted workpiece weight at 4 - 40 rpm 7,500 kg electric motors Main drive motor power and revolutions 51 kW Power of the feed motors of: - Vertical support beam (2 pieces) 16 Nm (gear 1:10) - Tappet (2 pieces) 16 Nm (gear 1:12) Power and revolutions of the drive motor of the hydraulic pumps (2 pieces) 3kW - 1,500 rpm Power and revolutions of the clamp hydraulic motor of the vertical support beam 1.5 kW - 1,500 rpm Power and rotation for crossbar adjustment 15 kW - 1500 rpm 3.5 Information on the compressed air supply and other consumables Compressed air connection: 6 bar free of oil and water 3.6 Energy Consumption Conditions Voltage: 3 x 400V Control Voltage: 24V Frequency: 50Hz Fusing: 315 A Main dimensions and weight of the machine Length 7,730mm Width 6,240mm Height: 6,700mm Weight: 85,750 kg Tool: Capto 60 recording Not powered front panel Turning diameter of the front plate 3,200 mm Clamping disc diameter 3,400 mm Number of rotation levels of the front panel 3 (continuously adjustable) Front panel speed ranges 0.8 - 40 rpm Level I 0.8 - 3 rpm Level II 0.8 - 11 rpm Level III 0.8 - 40 rpm processing of workpieces Max. turning diameter 3,500 mm Max. turning height of the workpieces above the front panel 2,200 mm Vertical supports Smallest center distance between the vertical supports 470 mm Largest glide path of the left vertical support 985 mm Maximum glide path of the right vertical support 985 mm Axis feed - stepless feed max.: X1.2 3m/min max.: z1.2 2.5 m / min Support - mirror Fast feeding of the crossbeam 600 mm/min Greater distance between the crossbar and the front panel 2,300 mm loading sizes • Permissible torque when turning workpieces with a Turning diameter of 2,000 mm and turning speed from 20 m / min. 8,000 kg • Largest chip cross-section for workpieces made of steel Fz = 50 kg / mm2 at a speed of 20 m / min for all supports 45 mm2 • Largest chip cross-section for workpieces made of steel Fz = 50 kg / mm2 at a speed of 20 m / min for a vertical support at max. piston length 985 mm 2.5 mm2 • Largest chip cross section for workpieces made of cast iron HB = 160 kg / mm2 at a speed of 20 m / min for all supports 120 mm2 • Largest chip cross section for workpieces made of cast iron HB = 160 kg / mm2 at a speed of 20 m / min for a vertical support with max. piston length 985 mm 22.5 mm2 • Largest permissible workpiece weight at 0.8 - 3.15 rpm 17,500 kg • Largest permissible workpiece weight at 4 - 40 rpm 7,500 kg electric motors Main drive motor power and revolutions 51 kW Power of the feed motors of: - Vertical support rod (2 pieces) 16 Nm (gear 1:10) - Tappet (2 pieces) 16 Nm (gear 1:12) Power and revolutions of the drive motor of hydraulic pumps (2 pieces) 3 kW - 1,500 rpm Power and revolutions of the clamp hydraulic motor of the vertical support rod 1.5 kW - 1,500 rpm Power and rotation to adjust the crossbar 15 kW - 1500 rpm Information on compressed air supply and other consumables Compressed air connection: 6 bar free of oil and water Energy consumption, conditions Voltage: 3 x 400V Control Voltage: 24V Frequency: 50Hz Protection: 315 A noise and waste emissions Noise level under load 80.4 dB (A) Sinumerik control: Type 840 D sl Main dimensions and weight of the machine Length 7,730mm Width 6,240mm Height: 6,700mm Weight: 85,750 kg Weight clamp disc: 7,500 kg

faceplate diameter 1600 mm︱swing diameter ca. 1800 mm︱turning height ca. 1500 mm︱total power requirement 37 kW︱

---
