          MAMACH Machinenhandel BV - Stockist for used machines

          Machinelist:

          Center Lathe

          used Center Lathe ToRen C 6246E x 2000 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1012 · Center Lathe

          ToRen - C 6246E x 2000 VARIO - - -

          Technical details
          Distance between centers 2000 mm︱Max. swing over bed 460 mm︱Max. swing over carriage 270 mm︱Max. swing in gap 690 mm︱Spindle bore 80 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 1 25 - 250 1/min︱Spindle speed 2 250 - 1700 1/min︱Travel cross slide 290 mm︱Travel top slide 120 mm︱Digital read-out Easson ︱Length 3250 mm︱Width 1080 mm︱Height 1700 mm︱Weight 2340 kg︱
            Distance between centers 2000 mm
            Max. swing over bed 460 mm
            Max. swing over carriage 270 mm
            Max. swing in gap 690 mm
            Spindle bore 80 mm
            Spindle taper Camlock D1-6
            Spindle speed 1 25 - 250 1/min
            Spindle speed 2 250 - 1700 1/min
            Travel cross slide 290 mm
            Travel top slide 120 mm
            Digital read-out Easson
            Length 3250 mm
            Width 1080 mm
            Height 1700 mm
            Weight 2340 kg
            Description :

          Datasheet
          Request / Contact

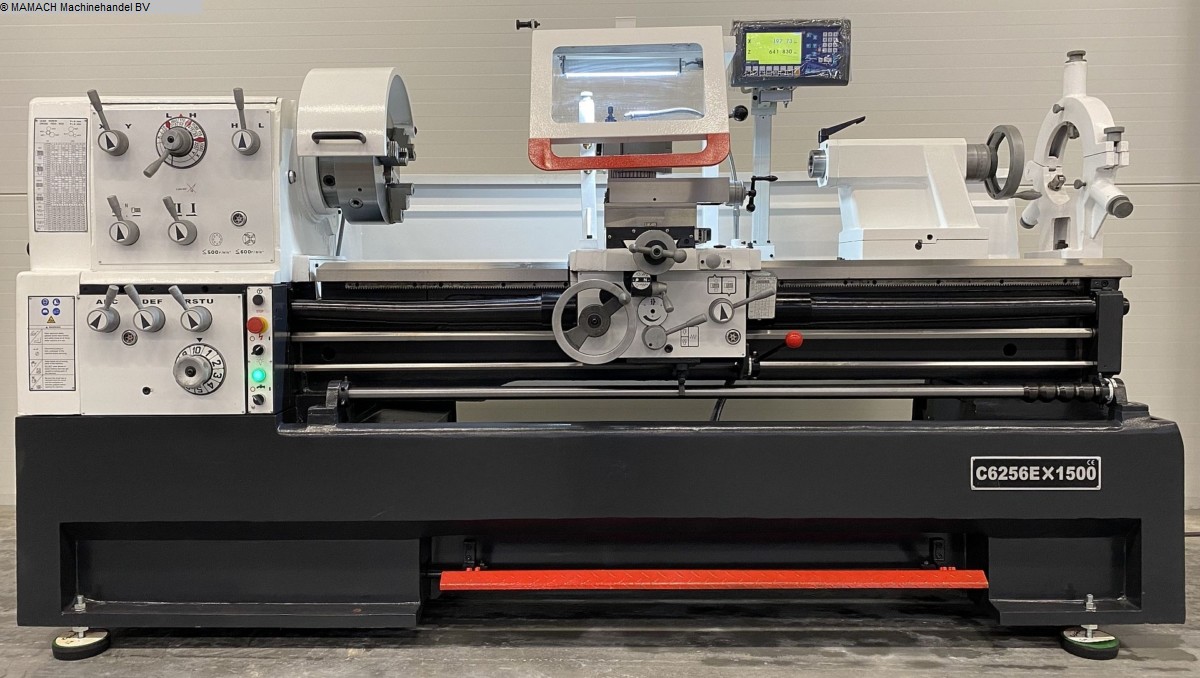

          used Center Lathe ToRen C6256E x 1500

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1013 · Center Lathe

          ToRen - C6256E x 1500 - - -

          Technical details
          Distance between centers 1500 mm︱Max. swing over bed 560 mm︱Max. swing over carriage 350 mm︱Max. swing in gap 788 mm︱Spindle bore 105 mm︱Spindle taper Camlock D1-8 ︱Spindle speed 25 - 1500 1/min︱Travel cross slide 326 mm︱Travel top slide 130 mm︱Digital read-out Easson ︱Length 2900 mm︱Width 1120 mm︱Height 1700 mm︱Weight 2370 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1500 mm
            Max. swing over bed 560 mm
            Max. swing over carriage 350 mm
            Max. swing in gap 788 mm
            Spindle bore 105 mm
            Spindle taper Camlock D1-8
            Spindle speed 25 - 1500 1/min
            Travel cross slide 326 mm
            Travel top slide 130 mm
            Digital read-out Easson
            Length 2900 mm
            Width 1120 mm
            Height 1700 mm
            Weight 2370 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C6256E x 2000

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1014 · Center Lathe

          ToRen - C6256E x 2000 - - -

          Technical details
          Distance between centers 2000 mm︱Max. swing over bed 560 mm︱Max. swing over carriage 350 mm︱Max. swing in gap 788 mm︱Spindle bore 105 mm︱Spindle taper Camlock D1-8 ︱Spindle speed 25 - 1500 1/min︱Travel cross slide 326 mm︱Travel top slide 130 mm︱Digital read-out Easson ︱Length 3400 mm︱Width 1120 mm︱Height 1700 mm︱Weight 2740 kg︱turning diameter 350 mm︱swing diameter over bed slide 560 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 2000 mm
            Max. swing over bed 560 mm
            Max. swing over carriage 350 mm
            Max. swing in gap 788 mm
            Spindle bore 105 mm
            Spindle taper Camlock D1-8
            Spindle speed 25 - 1500 1/min
            Travel cross slide 326 mm
            Travel top slide 130 mm
            Digital read-out Easson
            Length 3400 mm
            Width 1120 mm
            Height 1700 mm
            Weight 2740 kg
            turning diameter 350 mm
            swing diameter over bed slide 560 mm
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C6256E x 1500 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1015 · Center Lathe

          ToRen - C6256E x 1500 VARIO - - -

          Technical details
          Distance between centers 1500 mm︱Max. swing over bed 560 mm︱Max. swing over carriage 350 mm︱Max. swing in gap 7800 mm︱Spindle bore 105 mm︱Spindle taper Camlock D1-8 ︱Spindle speed 1 25 - 220 1/min︱Spindle speed 2 220 - 1500 1/min︱Travel cross slide 326 mm︱Travel top slide 130 mm︱Digital read-out Easson ︱Length 2900 mm︱Width 1120 mm︱Height 1700 mm︱Weight 2370 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1500 mm
            Max. swing over bed 560 mm
            Max. swing over carriage 350 mm
            Max. swing in gap 7800 mm
            Spindle bore 105 mm
            Spindle taper Camlock D1-8
            Spindle speed 1 25 - 220 1/min
            Spindle speed 2 220 - 1500 1/min
            Travel cross slide 326 mm
            Travel top slide 130 mm
            Digital read-out Easson
            Length 2900 mm
            Width 1120 mm
            Height 1700 mm
            Weight 2370 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen CD 6241 x 1000

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1003 · Center Lathe

          ToRen - CD 6241 x 1000 - - -

          Technical details
          Distance between centers 1000 mm︱Max. swing over bed 410 mm︱Max. swing over carriage 255 mm︱Max. swing in gap 580 mm︱Spindle bore 52 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 45 - 1800 1/min︱Travel cross slide 230 mm︱Travel top slide 100 mm︱Digital read-out Easson ︱Length 1940 mm︱Width 850 mm︱Height 1320 mm︱Weight 1500 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1000 mm
            Max. swing over bed 410 mm
            Max. swing over carriage 255 mm
            Max. swing in gap 580 mm
            Spindle bore 52 mm
            Spindle taper Camlock D1-6
            Spindle speed 45 - 1800 1/min
            Travel cross slide 230 mm
            Travel top slide 100 mm
            Digital read-out Easson
            Length 1940 mm
            Width 850 mm
            Height 1320 mm
            Weight 1500 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C 6246E x 1000

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1007 · Center Lathe

          ToRen - C 6246E x 1000 - - -

          Technical details
          Distance between centers 1000 mm︱Max. swing over bed 460 mm︱Max. swing over carriage 270 mm︱Max. swing in gap 690 mm︱Spindle bore 80 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 25 - 1700 1/min︱Travel cross slide 290 mm︱Travel top slide 120 mm︱Digital read-out Easson ︱Length 2200 mm︱Width 1080 mm︱Height 1700 mm︱Weight 1720 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1000 mm
            Max. swing over bed 460 mm
            Max. swing over carriage 270 mm
            Max. swing in gap 690 mm
            Spindle bore 80 mm
            Spindle taper Camlock D1-6
            Spindle speed 25 - 1700 1/min
            Travel cross slide 290 mm
            Travel top slide 120 mm
            Digital read-out Easson
            Length 2200 mm
            Width 1080 mm
            Height 1700 mm
            Weight 1720 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen CD 6241 x 1500

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1004 · Center Lathe

          ToRen - CD 6241 x 1500 - - -

          Technical details
          Distance between centers 1500 mm︱Max. swing over bed 410 mm︱Max. swing over carriage 255 mm︱Max. swing in gap 580 mm︱Spindle bore 52 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 45 - 180 1/min︱Travel cross slide 230 mm︱Travel top slide 100 mm︱Digital read-out Easson ︱Length 2450 mm︱Width 850 mm︱Height 1320 mm︱Weight 1725 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1500 mm
            Max. swing over bed 410 mm
            Max. swing over carriage 255 mm
            Max. swing in gap 580 mm
            Spindle bore 52 mm
            Spindle taper Camlock D1-6
            Spindle speed 45 - 180 1/min
            Travel cross slide 230 mm
            Travel top slide 100 mm
            Digital read-out Easson
            Length 2450 mm
            Width 850 mm
            Height 1320 mm
            Weight 1725 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen CD 6241 x 1000 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1005 · Center Lathe

          ToRen - CD 6241 x 1000 VARIO - - -

          Technical details
          Distance between centers 1000 mm︱Max. swing over bed 410 mm︱Max. swing over carriage 255 mm︱Max. swing in gap 580 mm︱Spindle bore 52 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 1 30 - 550 1/min︱Spindle speed 2 550 - 3000 1/min︱Travel cross slide 225 mm︱Travel top slide 100 mm︱Digital read-out Easson ︱Length 1940 mm︱Width 850 mm︱Height 1320 mm︱Weight 1150 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1000 mm
            Max. swing over bed 410 mm
            Max. swing over carriage 255 mm
            Max. swing in gap 580 mm
            Spindle bore 52 mm
            Spindle taper Camlock D1-6
            Spindle speed 1 30 - 550 1/min
            Spindle speed 2 550 - 3000 1/min
            Travel cross slide 225 mm
            Travel top slide 100 mm
            Digital read-out Easson
            Length 1940 mm
            Width 850 mm
            Height 1320 mm
            Weight 1150 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C 6246E x 2000

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1009 · Center Lathe

          ToRen - C 6246E x 2000 - - -

          Technical details
          Distance between centers 2000 mm︱Max. swing over bed 460 mm︱Max. swing over carriage 270 mm︱Max. swing in gap 690 mm︱Spindle bore 80 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 25 - 1700 1/min︱Travel cross slide 290 mm︱Travel top slide 120 mm︱Digital read-out Easson ︱Length 3250 mm︱Width 1080 mm︱Height 1700 mm︱Weight 2320 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 2000 mm
            Max. swing over bed 460 mm
            Max. swing over carriage 270 mm
            Max. swing in gap 690 mm
            Spindle bore 80 mm
            Spindle taper Camlock D1-6
            Spindle speed 25 - 1700 1/min
            Travel cross slide 290 mm
            Travel top slide 120 mm
            Digital read-out Easson
            Length 3250 mm
            Width 1080 mm
            Height 1700 mm
            Weight 2320 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C 6246E x 1500

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1008 · Center Lathe

          ToRen - C 6246E x 1500 - - -

          Technical details
          Distance between centers 1500 mm︱Max. swing over bed 460 mm︱Max. swing over carriage 270 mm︱Max. swing in gap 690 mm︱Spindle bore 80 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 25 - 1700 1/min︱Travel cross slide 290 mm︱Travel top slide 120 mm︱Digital read-out Easson ︱Length 2700 mm︱Width 1080 mm︱Height 1700 mm︱Weight 1970 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1500 mm
            Max. swing over bed 460 mm
            Max. swing over carriage 270 mm
            Max. swing in gap 690 mm
            Spindle bore 80 mm
            Spindle taper Camlock D1-6
            Spindle speed 25 - 1700 1/min
            Travel cross slide 290 mm
            Travel top slide 120 mm
            Digital read-out Easson
            Length 2700 mm
            Width 1080 mm
            Height 1700 mm
            Weight 1970 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C6256E x 2000 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1016 · Center Lathe

          ToRen - C6256E x 2000 VARIO - - -

          Technical details
          Distance between centers 2000 mm︱Max. swing over bed 560 mm︱Max. swing over carriage 350 mm︱Max. swing in gap 788 mm︱Spindle bore 105 mm︱Spindle taper Camlock D1-8 ︱Spindle speed 1 25 - 220 1/min︱Spindle speed 2 220 - 1500 1/min︱Travel cross slide 326 mm︱Travel top slide 130 mm︱Digital read-out Easson ︱Length 3400 mm︱Width 1120 mm︱Height 1700 mm︱Weight 2740 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 2000 mm
            Max. swing over bed 560 mm
            Max. swing over carriage 350 mm
            Max. swing in gap 788 mm
            Spindle bore 105 mm
            Spindle taper Camlock D1-8
            Spindle speed 1 25 - 220 1/min
            Spindle speed 2 220 - 1500 1/min
            Travel cross slide 326 mm
            Travel top slide 130 mm
            Digital read-out Easson
            Length 3400 mm
            Width 1120 mm
            Height 1700 mm
            Weight 2740 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen CD 6241 x 1500 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1006 · Center Lathe

          ToRen - CD 6241 x 1500 VARIO - - -

          Technical details
          Distance between centers 1500 mm︱Max. swing over bed 410 mm︱Max. swing over carriage 255 mm︱Max. swing in gap 580 mm︱Spindle bore 52 mm︱Spindle speed 1 30 - 550 1/min︱Spindle speed 2 550 - 3000 1/min︱Travel cross slide 225 mm︱Travel top slide 100 mm︱Digital read-out Easson ︱Length 2450 mm︱Width 850 mm︱Height 1320 mm︱Weight 1775 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1500 mm
            Max. swing over bed 410 mm
            Max. swing over carriage 255 mm
            Max. swing in gap 580 mm
            Spindle bore 52 mm
            Spindle speed 1 30 - 550 1/min
            Spindle speed 2 550 - 3000 1/min
            Travel cross slide 225 mm
            Travel top slide 100 mm
            Digital read-out Easson
            Length 2450 mm
            Width 850 mm
            Height 1320 mm
            Weight 1775 kg
            Description :

          Datasheet
          Request / Contact
          used Center Lathe ToRen C 6246E x 1000 VARIO

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-N1010 · Center Lathe

          ToRen - C 6246E x 1000 VARIO - - -

          Technical details
          Distance between centers 1000 mm︱Max. swing over bed 460 mm︱Max. swing over carriage 270 mm︱Max. swing in gap 690 mm︱Spindle bore 80 mm︱Spindle taper Camlock D1-6 ︱Spindle speed 1 25 - 250 1/min︱Spindle speed 2 250 - 1700 1/min︱Travel cross slide 290 mm︱Travel cross slide 120 mm︱Digital read-out Easson ︱Length 2200 mm︱Width 1080 mm︱Height 1700 mm︱Weight 1740 kg︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            Distance between centers 1000 mm
            Max. swing over bed 460 mm
            Max. swing over carriage 270 mm
            Max. swing in gap 690 mm
            Spindle bore 80 mm
            Spindle taper Camlock D1-6
            Spindle speed 1 25 - 250 1/min
            Spindle speed 2 250 - 1700 1/min
            Travel cross slide 290 mm
            Travel cross slide 120 mm
            Digital read-out Easson
            Length 2200 mm
            Width 1080 mm
            Height 1700 mm
            Weight 1740 kg
            Description :

          Datasheet
          Request / Contact

          CNC Lathe

          used CNC Lathe DMG CTX 800 Beta

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2746 · CNC Lathe

          DMG - CTX 800 Beta - - 2010 - Siemens 840D Solutionline

          Technical details
          Control Siemens 840D Solutionline ︱Turning diameter 410 mm︱Turning length 800 mm︱Spindle bore diameter 65 mm︱Spindle Speed 5000 1/min︱Spindle motor 34/25 kW︱X-Axis movement 300 mm︱Movement Y-axis +/- 60 mm︱Movement Z-axis 850 mm︱W-axis movement (subspindle to mainspindle) mm︱Minimum indexing C-Axis main Spindle °︱Minimum Indexing C Axis Sub Spindle °︱Number of tools on turret 16 x︱Number of driven tools 16 x︱Spindle speed driven tools 4000 1/min︱Tool Taper DIN 69880/30 ︱Spindle motor driven tools 11,3 kW︱Bar feeder Irco Breuning Simag 70 ︱Required floor space mm︱Length 4475 mm︱
            Control Siemens 840D Solutionline
            Turning diameter 410 mm
            Turning length 800 mm
            Spindle bore diameter 65 mm
            Spindle Speed 5000 1/min
            Spindle motor 34/25 kW
            X-Axis movement 300 mm
            Movement Y-axis +/- 60 mm
            Movement Z-axis 850 mm
            Number of tools on turret 16 x
            Number of driven tools 16 x
            Spindle speed driven tools 4000 1/min
            Tool Taper DIN 69880/30
            Spindle motor driven tools 11,3 kW
            Bar feeder Irco Breuning Simag 70
            Length 4475 mm
            Description :

          Datasheet
          Request / Contact
          used CNC Lathe MAZAK Quick Turn Nexus 250-II M

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2758 · CNC Lathe

          MAZAK - Quick Turn Nexus 250-II M - - 2007 - Mazatrol Matrix Nexus

          Technical details
          Control Mazatrol Matrix Nexus ︱Turning diameter 276/380 mm︱Turning length 1085 mm︱Spindle bore diameter 77 mm︱Spindle Speed 35 - 4.000 1/min︱Spindle motor 26/22 kW︱Movement X-axis 230 mm︱Movement Z-axis 1085 mm︱Minimum indexing C-Axis main Spindle 0,0001 °︱Number of tools on turret 12 x︱Spindle speed driven tools 25 - 4.500 1/min︱Number of driven tools 12 x︱Tool Taper Mazak VDI 40 ︱Spindle motor driven tools 5,5 kW︱Bar feeder ︱Required floor space mm︱Length 4480 mm︱Width 1908 mm︱Height 1870 mm︱Weight 5200 kg︱
            Control Mazatrol Matrix Nexus
            Turning diameter 276/380 mm
            Turning length 1085 mm
            Spindle bore diameter 77 mm
            Spindle Speed 35 - 4.000 1/min
            Spindle motor 26/22 kW
            Movement X-axis 230 mm
            Movement Z-axis 1085 mm
            Minimum indexing C-Axis main Spi. 0,0001 °
            Number of tools on turret 12 x
            Spindle speed driven tools 25 - 4.500 1/min
            Number of driven tools 12 x
            Tool Taper Mazak VDI 40
            Spindle motor driven tools 5,5 kW
            Length 4480 mm
            Width 1908 mm
            Height 1870 mm
            Weight 5200 kg
            Description :

          Datasheet
          Request / Contact
          used CNC Lathe GILDEMEISTER CTX 320 Linear V6

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2734 · CNC Lathe

          GILDEMEISTER - CTX 320 Linear V6 - - 2005 - Siemens 840D Powerline

          Technical details
          Control Siemens 840D Powerline ︱Turning diameter 240 mm︱Turning length mm︱Spindle bore diameter 51 mm︱Spindle Speed 6000 1/min︱Spindle motor 20/16 kW︱X-Axis movement 141 mm︱Y-Axis movement 32 mm︱Z-Axis movement 450 mm︱W-axis movement (subspindle to mainspindle) 380 mm︱Minimum indexing C-Axis main Spindle 0,001 °︱Minimum Indexing C Axis Sub Spindle 0,001 °︱Number of tools on turret 12 x︱Number of driven tools 12 x︱Spindle speed driven tools 5000 1/min︱Tool Taper DIN 69880-30 ︱Spindle motor driven tools kW︱Required floor space mm︱Length 3912 mm︱Width 2141 mm︱
            Control Siemens 840D Powerline
            Turning diameter 240 mm
            Spindle bore diameter 51 mm
            Spindle Speed 6000 1/min
            Spindle motor 20/16 kW
            X-Axis movement 141 mm
            Y-Axis movement 32 mm
            Z-Axis movement 450 mm
            W-axis movement (subspindle to m. 380 mm
            Minimum indexing C-Axis main Spi. 0,001 °
            Minimum Indexing C Axis Sub Spin. 0,001 °
            Number of tools on turret 12 x
            Number of driven tools 12 x
            Spindle speed driven tools 5000 1/min
            Tool Taper DIN 69880-30
            Length 3912 mm
            Width 2141 mm
            Description :

          Datasheet
          Request / Contact
          used CNC Lathe MORI SEIKI ZL 200 SMC

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-V2344 · CNC Lathe

          MORI SEIKI - ZL 200 SMC - - 2000 - MSD 501-II

          Technical details
          Control MSD 501-II ︱Turning diameter 180/390 mm︱Turning length 300 mm︱Spindle bore diameter 65 mm︱Spindle Speed 40 - 4000 1/min︱Spindle motor 11/7,5 kW︱X-Axis movement 235 mm︱Y-Axis movement mm︱Z-Axis movement 520 mm︱W-axis movement (subspindle to mainspindle) mm︱C-Axis indexing 360 °︱Number of turrets 2 ︱Number of tools on turret 12 + 8 x︱Number of driven tools 12 + 8 x︱Spindle speed driven tools 3000 1/min︱Tool Taper ︱Bar feeder LNS Quick Load Servo II ︱Required floor space 3968 x 2150 mm︱Length mm︱Width mm︱
            Control MSD 501-II
            Turning diameter 180/390 mm
            Turning length 300 mm
            Spindle bore diameter 65 mm
            Spindle Speed 40 - 4000 1/min
            Spindle motor 11/7,5 kW
            X-Axis movement 235 mm
            Z-Axis movement 520 mm
            C-Axis indexing 360 °
            Number of turrets 2
            Number of tools on turret 12 + 8 x
            Number of driven tools 12 + 8 x
            Spindle speed driven tools 3000 1/min
            Bar feeder LNS Quick Load Servo II
            Required floor space 3968 x 2150 mm
            Description :

          Datasheet
          Request / Contact

          CNC Turning- and Milling Center

          used CNC Turning- and Milling Center AXA VHC 50/3000 XTS/D

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-V2348 · CNC Turning- and Milling Center

          AXA - VHC 50/3000 XTS/D - - 2007 - Siemens Sinumerik 840D

          Technical details
          Control Siemens Sinumerik 840D ︱Table length 4400 mm︱Table width 750 mm︱Movement X-axis 3000 mm︱Movement Y-axis 900 mm︱Movement Z-axis 1000 mm︱B-Axis travel -90 / +90 °︱C-Axis indexing 0,001 °︱Mill spindle speed 30 - 4000 1/min.︱Spindle motor 285 kW︱Spindle taper SK-50 ︱Tools in tool magazine 60 ︱Turning diameter 1500 mm︱Turning length 1000 mm︱Turning speed 150 1/min︱Tool Taper Capto C6 ︱Length 6600 mm︱Width 4100 mm︱Height 3700 mm︱Weight 39000 kg︱
            Control Siemens Sinumerik 840D
            Table length 4400 mm
            Table width 750 mm
            Movement X-axis 3000 mm
            Movement Y-axis 900 mm
            Movement Z-axis 1000 mm
            B-Axis travel -90 / +90 °
            C-Axis indexing 0,001 °
            Mill spindle speed 30 - 4000 1/min.
            Spindle motor 285 kW
            Spindle taper SK-50
            Tools in tool magazine 60
            Turning diameter 1500 mm
            Turning length 1000 mm
            Turning speed 150 1/min
            Tool Taper Capto C6
            Length 6600 mm
            Width 4100 mm
            Height 3700 mm
            Weight 39000 kg
            Description :

          Datasheet
          Request / Contact
          used CNC Turning- and Milling Center MAZAK Integrex 200-III S

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2753 · CNC Turning- and Milling Center

          MAZAK - Integrex 200-III S - - 2004 - Mazatrol Fusion 640MT PRO

          Technical details
          Control Mazatrol Fusion 640MT PRO ︱Turning diameter 550/660 mm︱Turning length 1016 mm︱Spindle bore diameter 65 mm︱Spindle nose A2-6 ︱Spindle nose sub spindle A2-6 ︱Turning speed 35 - 5000 1/min︱Turning speed sub spindle 35 - 5000 1/min︱Milling head speed 12000 1/min︱Movement X-axis 580 mm︱Movement Y-axis 160 mm︱Movement Z-axis 1045 mm︱B-Axis travel 225 °︱C-Axis indexing 360 °︱Tool Taper Capto C6 ︱Tools in tool magazine 40 ︱Length 3820 mm︱Width 2060 mm︱Height 2597 mm︱Weight 10400 kg︱
            Control Mazatrol Fusion 640MT PRO
            Turning diameter 550/660 mm
            Turning length 1016 mm
            Spindle bore diameter 65 mm
            Spindle nose A2-6
            Spindle nose sub spindle A2-6
            Turning speed 35 - 5000 1/min
            Turning speed sub spindle 35 - 5000 1/min
            Milling head speed 12000 1/min
            Movement X-axis 580 mm
            Movement Y-axis 160 mm
            Movement Z-axis 1045 mm
            B-Axis travel 225 °
            C-Axis indexing 360 °
            Tool Taper Capto C6
            Tools in tool magazine 40
            Length 3820 mm
            Width 2060 mm
            Height 2597 mm
            Weight 10400 kg
            Description :

          Datasheet
          Request / Contact
          used CNC Turning- and Milling Center DOOSAN Puma MX 2500ST

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2689 · CNC Turning- and Milling Center

          DOOSAN - Puma MX 2500ST - - 2004 - Fanuc 16i-TB

          Technical details
          Control Fanuc 16i-TB ︱Turning diameter 550/300 mm︱Turning length 1020 mm︱Spindle bore diameter 77 mm︱Spindle nose A2-8 ︱Spindle nose sub spindle A2-8 ︱Turning speed 3500 1/min︱Turning speed sub spindle 3500 1/min︱Milling head speed 10.000 1/min︱Movement X-axis 555 mm︱Movement Y-axis +80/-80 mm︱Movement Z-axis 1095 mm︱B-Axis travel 240 °︱C-Axis indexing 0,001 °︱Tool Taper Capto C6 ︱Tools in tool magazine 40 ︱Length 4520 mm︱Width 2495 mm︱Height 2600 mm︱Weight 12500 kg︱
            Control Fanuc 16i-TB
            Turning diameter 550/300 mm
            Turning length 1020 mm
            Spindle bore diameter 77 mm
            Spindle nose A2-8
            Spindle nose sub spindle A2-8
            Turning speed 3500 1/min
            Turning speed sub spindle 3500 1/min
            Milling head speed 10.000 1/min
            Movement X-axis 555 mm
            Movement Y-axis +80/-80 mm
            Movement Z-axis 1095 mm
            B-Axis travel 240 °
            C-Axis indexing 0,001 °
            Tool Taper Capto C6
            Tools in tool magazine 40
            Length 4520 mm
            Width 2495 mm
            Height 2600 mm
            Weight 12500 kg
            Description :

          Datasheet
          Request / Contact

          Machining Center - Horizontal

          used Machining Center - Horizontal MAZAK HC Nexus 5000-II

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2760 · Machining Center - Horizontal

          MAZAK - HC Nexus 5000-II - - 2007 - Mazatrol Matrix

          Technical details
          Control Mazatrol Matrix ︱Pallet table size 500 x 500 mm︱Number of pallets 2 x︱Table load 700 kg︱Movement X-axis 730 mm︱Movement Y-axis 730 mm︱Movement Z-axis 740 mm︱Table indexing 0,001 °︱Spindle taper DIN 69871A-40 ︱Spindle Speed 18.000 1/min︱Spindle motor 35/26 kW︱Magazin capacity 80 ︱Required floor space mm︱Length 5985 mm︱Width 3056 mm︱Height 2813 mm︱Weight 11000 kg︱
            Control Mazatrol Matrix
            Pallet table size 500 x 500 mm
            Number of pallets 2 x
            Table load 700 kg
            Movement X-axis 730 mm
            Movement Y-axis 730 mm
            Movement Z-axis 740 mm
            Table indexing 0,001 °
            Spindle taper DIN 69871A-40
            Spindle Speed 18.000 1/min
            Spindle motor 35/26 kW
            Magazin capacity 80
            Length 5985 mm
            Width 3056 mm
            Height 2813 mm
            Weight 11000 kg
            Description :

          Datasheet
          Request / Contact
          used Machining Center - Horizontal MAZAK PFH 5800 + PMC

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2772 · Machining Center - Horizontal

          MAZAK - PFH 5800 + PMC - - 2004 - Mazatrol 640M

          Technical details
          Control Mazatrol 640M ︱Pallet table size 500x500 mm︱Number of pallets 10 x︱Table load 700 kg︱Movement X-axis 730 mm︱Movement Y-axis 730 mm︱Movement Z-axis 740 mm︱Table indexing 360 x 1 °︱Spindle taper CAT 40 ︱Spindle Speed 12.000 1/min︱Spindle motor 22/15 kW︱Magazin capacity 80 ︱Required floor space 9850 x 10145 mm︱Length mm︱Width mm︱Height 3050 mm︱Weight 11600 kg︱
            Control Mazatrol 640M
            Pallet table size 500x500 mm
            Number of pallets 10 x
            Table load 700 kg
            Movement X-axis 730 mm
            Movement Y-axis 730 mm
            Movement Z-axis 740 mm
            Table indexing 360 x 1 °
            Spindle taper CAT 40
            Spindle Speed 12.000 1/min
            Spindle motor 22/15 kW
            Magazin capacity 80
            Required floor space 9850 x 10145 mm
            Height 3050 mm
            Weight 11600 kg
            Description :

          Datasheet
          Request / Contact
          used Machining Center - Horizontal MAZAK FH 880 Palletech

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2380 · Machining Center - Horizontal

          MAZAK - FH 880 Palletech - - 1997 - Mazatrol M-Plus

          Technical details
          Control Mazatrol M-Plus ︱Pallet table size 800x80 mm︱Number of pallets 14 x︱Table load 2200 kg︱Movement X-axis 1300 mm︱Movement Y-axis 1100 mm︱Movement Z-axis 1000 mm︱Table indexing 0,001 °︱Spindle taper DIN 69871A-50 ︱Spindle Speed 35 - 7000 1/min︱Spindle motor 30/22 kW︱Magazin capacity 237 ︱Required floor space mm︱Height mm︱Weight 36.000 kg︱
            Control Mazatrol M-Plus
            Pallet table size 800x80 mm
            Number of pallets 14 x
            Table load 2200 kg
            Movement X-axis 1300 mm
            Movement Y-axis 1100 mm
            Movement Z-axis 1000 mm
            Table indexing 0,001 °
            Spindle taper DIN 69871A-50
            Spindle Speed 35 - 7000 1/min
            Spindle motor 30/22 kW
            Magazin capacity 237
            Weight 36.000 kg
            Description :

          Datasheet
          Request / Contact

          Machining Center - Universal

          used Machining Center - Universal MATEC 50 HV/NC

          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande
          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-2709 · Machining Center - Universal

          MATEC - 50 HV/NC - - 2007 - Heidenhain iTNC 530

          Technical details
          Control Heidenhain iTNC 530 ︱Table size 4500 x 1035 mm︱NC Roundtable (integrated in machine table) 1000 mm︱Table load kg︱Number of pallets x︱Maximum workpiece diameterxheight mm︱Movement X-axis 4000 mm︱Movement Y-axis 1000 mm︱Movement Z-axis 1300 mm︱C-Axis (table rotation) 360 °︱A-Axis (table tilt) ︱B-Axis travel +/- 105 °︱C-Axis (table rotation) ︱Spindle Speed 20 - 8.000 1/min︱Spindle taper HSK 100-A ︱Spindle motor 68 kW︱Magazin capacity 48 ︱Required floor space mm︱Length 9800 mm︱Width 5500 mm︱
            Control Heidenhain iTNC 530
            Table size 4500 x 1035 mm
            NC Roundtable (integrated in mac. 1000 mm
            Movement X-axis 4000 mm
            Movement Y-axis 1000 mm
            Movement Z-axis 1300 mm
            C-Axis (table rotation) 360 °
            B-Axis travel +/- 105 °
            Spindle Speed 20 - 8.000 1/min
            Spindle taper HSK 100-A
            Spindle motor 68 kW
            Magazin capacity 48
            Length 9800 mm
            Width 5500 mm
            Description :

          Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          •
          •
            •
          Mamach Machinenhandel BV 4761 RM - Zevenbergen Campagneweg 10 Niederlande
          Mamach Machinenhandel BV

          Campagneweg 10



          Contact Trader


            Mamach Machinenhandel BV
           Campagneweg 10
            4761 RM - Zevenbergen
            Niederlande
            +31 (0)168325354

            info@mamach.nl
            www.mamach.nl
            Contact person:


          Trader Profile



          Machine category


          Bandsäge · Bearbeitungszentrum - Horizontal · Bearbeitungszentrum - Universal · Bearbeitungszentrum - Vertikal · Bettfräsmaschine - Universal · CNC Dreh- und Fräszentrum · CNC Drehmaschine · Futter · Leit- und Zugspindeldrehmaschine · Meßmittel · Sondermaschine · Späneförderer · Ständerbohrmaschine · Werkstattpresse - hydraulisch · Werkzeugfräsmaschine - Universal ·
          Компендиум
          Software
          Содержание подержанных машин
          Конфиденциальность
          Присоединяйтесь
          © 2000-2023, Logotech oHG · Программное обеспечение и Интернет-услуги - Все права защищены
