          Metal Processing - Bevel Gear Grinding Machine

          Machinelist: Станок для шлифования конических зубчатых колес


          Bevel Gear Grinding Machine

          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON 275 G


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17513 · Bevel Gear Grinding Machine

          GLEASON - 275 G - - 2007 - 160 i - MB FANUC

          Technical details
          ratio of transmission 10:1 ︱min. number of teeth 3 ︱max. number of teeth 200 ︱range of tooth size 20 mm︱diameter of tools min 69,85 mm︱tooth width max. 58 mm︱diameter of tools max. 230 mm︱x-axis 325 mm︱y-axis 350 mm︱z-axis 470 mm︱work piece table - Ø 212,71 mm︱b-axis + 90,1 / - 1 °︱Control 160 i - MB FANUC︱total power requirement 75 kW︱weight of the machine ca. 10.000 Kg︱dimensions of the machine ca. 6,10 x 4,40 x 3,30 m︱
          Coolant system Hoffmann DO 150 Oil mist suction ELBARON Fire extinguishing system
            ratio of transmission 10:1
            min. number of teeth 3
            max. number of teeth 200
            range of tooth size 20 mm
            diameter of tools min 69,85 mm
            tooth width max. 58 mm
            diameter of tools max. 230 mm
            x-axis 325 mm
            y-axis 350 mm
            z-axis 470 mm
            work piece table - Ø 212,71 mm
            b-axis + 90,1 / - 1 °
            Control 160 i - MB FANUC
            total power requirement 75 kW
            weight of the machine ca. 10.000 Kg
            dimensions of the machine ca. 6,10 x 4,40 x 3,30 m
            Description :
            Coolant system Hoffmann DO 150
            Oil mist suction ELBARON
            Fire extinguishing system
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON- PFAUTER Phoenix 800 G


          • Emuk Werkzeugmaschinen GmbH
          • Siemensstrasse 24
          • 76316 Malsch
          • Deutschland

          • +49 (0) 7246 1392
            +49 (0) 7246 1394
          • info@emuk.de
            www.emuk.de
          #1058-20008 · Bevel Gear Grinding Machine

          GLEASON- PFAUTER - Phoenix 800 G - - 2006 - Fanuc 160-MB

          Technical details
          max. wheel diameter 800 mm︱gear width 140 mm︱max. module 17 ︱min. module 0,5 ︱Control Fanuc 160-MB︱total power requirement 85 kW︱weight of the machine ca. 22 t︱
          From Development Department ! # Machine like new !
            max. wheel diameter 800 mm
            gear width 140 mm
            max. module 17
            min. module 0,5
            Control Fanuc 160-MB
            total power requirement 85 kW
            weight of the machine ca. 22 t
            Description :
            From Development Department !
            # Machine like new !
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON 275 G


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17512 · Bevel Gear Grinding Machine

          GLEASON - 275 G - - 2005 - SIN 840 D SIEMENS

          Technical details
          ratio of transmission 10:1 ︱min. number of teeth 3 ︱max. number of teeth 200 ︱range of tooth size 20 mm︱diameter of tools min 69,85 mm︱tooth width max. 58 mm︱diameter of tools max. 230 mm︱x-axis 325 mm︱y-axis 350 mm︱z-axis 470 mm︱work piece table - Ø 212,71 mm︱b-axis + 90,1 / - 1 °︱Control SIN 840 D SIEMENS︱total power requirement 75 kW︱weight of the machine ca. 10.000 Kg︱dimensions of the machine ca. 6,10 x 4,40 x 3,30 m︱
          Coolant system Hoffmann DO 150 Oil mist suction ELBARON Fire extinguishing system
            ratio of transmission 10:1
            min. number of teeth 3
            max. number of teeth 200
            range of tooth size 20 mm
            diameter of tools min 69,85 mm
            tooth width max. 58 mm
            diameter of tools max. 230 mm
            x-axis 325 mm
            y-axis 350 mm
            z-axis 470 mm
            work piece table - Ø 212,71 mm
            b-axis + 90,1 / - 1 °
            Control SIN 840 D SIEMENS
            total power requirement 75 kW
            weight of the machine ca. 10.000 Kg
            dimensions of the machine ca. 6,10 x 4,40 x 3,30 m
            Description :
            Coolant system Hoffmann DO 150
            Oil mist suction ELBARON
            Fire extinguishing system
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом KLINGELNBERG G 27


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17504 · Bevel Gear Grinding Machine

          KLINGELNBERG - G 27 - - 2004 - SINUMERIK 840 D

          Technical details
          max. wheel diameter 300 mm︱max. module 8 ︱min. module 0,7 ︱Control SINUMERIK 840 D ︱min/max. pitch cone angle - 90 / + 90 °︱workpiece spindle - bore 127 mm︱grinding wheel diameter 50 - 230 mm︱spindle speeds (infinitely variable) 7.500 U/min︱work piece spindle speed 700 U/min︱total power requirement 146 kW︱weight of the machine ca. 21 t︱dimensions of the machine ca. 5,5 x 3,6 x 3,1 m︱
          with filtration system ADF 1.0 from Hoffmann A precision grinding machine for the machining of spiral bevel gears according to the systems Klingelnberg, Wiener, Oerlikon, Gleason, as well as for the machining of front couplings and curvic couplings. There is software installed for Gleason (conical tooth height) + oversize measurement control
            max. wheel diameter 300 mm
            max. module 8
            min. module 0,7
            Control SINUMERIK 840 D
            min/max. pitch cone angle - 90 / + 90 °
            workpiece spindle - bore 127 mm
            grinding wheel diameter 50 - 230 mm
            spindle speeds (infinitely varia. 7.500 U/min
            work piece spindle speed 700 U/min
            total power requirement 146 kW
            weight of the machine ca. 21 t
            dimensions of the machine ca. 5,5 x 3,6 x 3,1 m
            Description :
            with filtration system ADF 1.0 from Hoffmann
            A precision grinding machine for the machining of spiral bevel gears according
            to the systems Klingelnberg, Wiener, Oerlikon, Gleason, as well as for the
            machining of front couplings and curvic couplings.
            There is software installed for Gleason (conical tooth height) + oversize
            measurement control

          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом KLINGELNBERG G 27


          • Leyendecker & Hollmann GmbH
          • Konrad-Zuse-Str. 5
          • 40789 Monheim
          • Deutschland

          • +49 (2173) 22 55 0
            +49 (2173) 25627
          • info@LHmachine.com
            www.LHmachine.com
          #1083-02980 · Bevel Gear Grinding Machine

          KLINGELNBERG - G 27 - - 2004 - SIEMENS 840 D

          Technical details
          max. wheel diameter 300 mm︱gear width ca. 60 mm︱max. module 8 ︱min. module 0,7 ︱Control SIEMENS 840 D︱min/max. pitch cone angle - 90 ... + 90 °︱workpiece spindle - bore 127 mm︱grinding wheel diameter 50 - 230 mm︱spindle speeds (infinitely variable) 7500 U/min︱work piece spindle speed 700 U/min︱total power requirement 146 kW︱weight of the machine ca. 21 t︱dimensions of the machine ca. 5,5 x 3,6 x 3,1 m︱
          Precision Grinding Machine for the machining of spiral bevel gears according to the systems Klingelnberg, Wiener, Oerlikon, Gleason, as well as for the machining of front clutches and curvic couplings. Equipment / Accessories: Hoffmann Filteranlage ERK330-V-2-S
            max. wheel diameter 300 mm
            gear width ca. 60 mm
            max. module 8
            min. module 0,7
            Control SIEMENS 840 D
            min/max. pitch cone angle - 90 ... + 90 °
            workpiece spindle - bore 127 mm
            grinding wheel diameter 50 - 230 mm
            spindle speeds (infinitely varia. 7500 U/min
            work piece spindle speed 700 U/min
            total power requirement 146 kW
            weight of the machine ca. 21 t
            dimensions of the machine ca. 5,5 x 3,6 x 3,1 m
            Description :
            Precision Grinding Machine for the machining of spiral bevel gears according to
            the systems Klingelnberg, Wiener, Oerlikon, Gleason, as well as for the
            machining of front clutches and curvic couplings.

            Equipment / Accessories:
            Hoffmann Filteranlage ERK330-V-2-S
          195.000 €
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON PHOENIX 200 HG


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17417 · Bevel Gear Grinding Machine

          GLEASON - PHOENIX 200 HG - - 1999 - GE Fanuc 15MB

          Technical details
          ratio of transmission 10 : 1 ︱workpiece spindle swivable +/- - 5 / + 90 °︱range of tooth size 16mm mm︱tooth width 40,65 mm︱number of teeth 5 - 200 incl. ︱max. pitch circle 215,90 mm︱x-axis -152 / 102 mm︱y-axis -102 / 178 mm︱z-axis 51 / 304 mm︱control GE Fanuc 15MB ︱weight of machine 10,2 t︱dimensions of the machine ca. 2,50 x 1,70 x 2,40 m︱total power requirement 35 kW︱
          CNC- grinder for spiral- and hypoid bevel gear, GE Fanuc 150-M Control - without coolant unit!
            ratio of transmission 10 : 1
            workpiece spindle swivable +/- - 5 / + 90 °
            range of tooth size 16mm mm
            tooth width 40,65 mm
            number of teeth 5 - 200 incl.
            max. pitch circle 215,90 mm
            x-axis -152 / 102 mm
            y-axis -102 / 178 mm
            z-axis 51 / 304 mm
            control GE Fanuc 15MB
            weight of machine 10,2 t
            dimensions of the machine ca. 2,50 x 1,70 x 2,40 m
            total power requirement 35 kW
            Description :
            CNC- grinder for spiral- and hypoid bevel gear, GE Fanuc 150-M Control
            - without coolant unit!
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON PHOENIX 200 HG


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com

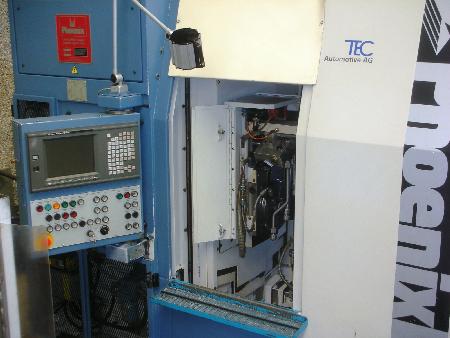

          #1049-328540 · Bevel Gear Grinding Machine

          GLEASON - PHOENIX 200 HG - - 1997 -

          Technical details
          max. wheel diameter 215 mm︱gear width 40,65 mm︱max. module ︱total power requirement 20 kW︱weight of the machine ca. 10 t︱
          Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. * Extensive coolant equipment with filter system, band filter, etc. * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing. * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times. Condition : Very good - machine can be inspected here under power Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.
            max. wheel diameter 215 mm
            gear width 40,65 mm
            total power requirement 20 kW
            weight of the machine ca. 10 t
            Description :
            Max. external Ø of workpiece 215 mm
            Tooth profile, height x width 16 x 40.65 mm
            No. of teeth 5 - 200
            Max. tooth ratio 1 : 10

            Grinding wheel Ø 51 - 190 mm
            Grinding wheel speeds 1,000 - 6,000 rpm

            X Axis (horizontal) 152 mm
            Y Axis (vertical) 178 mm
            Z Axis (slide base plate) 304 mm
            Distance from middle of machine to middle of workspindle 115 mm
            Axial speed 125 mm/sec
            Workpiece speeds 0 - 30 rpm

            Workspindle bore, conical 3 29/32 inch

            Total electrical load 20 kW - 380 V - 50 Hz
            Weight, approx. 10,000 kg

            Accessories / Special Features

            * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters.
            * Extensive coolant equipment with filter system, band filter, etc.
            * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing.
            * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times.


            Condition : Very good - machine can be inspected here under power
            Delivery : Ex stock, as inspected
            Payment : Net, after conclusion of contract

            Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.
          Datasheet
          Request / Contact
          б / у Зуборезные станки Станок для шлифования конических зубчатых колес GLEASON 130 Шлифовальный станок для криволинейного соединения


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17737 · Bevel Gear Grinding Machine

          GLEASON - 130 Curvic Coupling Grinder - - 1985/2000 - FANUC 18 MB

          Technical details
          max. wheel diameter 1524 mm︱gear width - mm︱max. module - ︱min. module - ︱grinding wheel turining speeds 1 - 3000 U/min︱grinding wheel size 146 - 546 mm︱max. workpiece diameter 1524 mm︱Control FANUC 18 MB ︱w-axis 27,69 mm︱z-axis 88,9 - 698,5 mm︱U-axis 50,8 - 546,1 mm︱feed: ︱w-axis 432 mm/min︱z-axis 3632 mm/min︱b-axis 2,5 °/sec︱total power requirement kW︱weight of the machine ca. 17,5 t︱dimensions of the machine ca. 4,4 x 3,98 x 3,7 m︱
          2000 retrofitted/modernized by Gleason with new CNC, Elektric, Drives/motors, Geometrie etc. Gleason Curvic Coupling Grinding Machines are high-speed large bore spindle machines for grinding curvic teeth in face couplings. A fully-automatic grinding cycle enables the production of extremely accurate and uniform couplings at high production rates. Couplings are roughed and finished from a solid blank in one machine setup. - CNC Control FANUC 18MB - CNC Indexer - Maximum Full Depth 9.5 mm - Maximum Diameter-Part 1,524 mm - Maximum Diameter-Coupling 914 mm - Maximum Shaft Diameter 304.8 mm - Maximum Shaft Length from Work Spindle Face(Longer Shafts Permissible based on Arbor Distance) 1397 mm - Index Range 1 -200 - Work Spindle Diameter of Taper at Large End 586 mm - Work Spindle Taper per Foot 38 mm - Work Spindle Depth of Taper 16.5 mm - Work Spindle Diameter of Straight Bore (Front) 584 mm - Work Spindle Depth of Straight Bore 752 mm - Work Spindle Diameter (Rear) 311 mm - Axial Wheel Advance for Wheel Wear 50.8 mm
            max. wheel diameter 1524 mm
            gear width - mm
            max. module -
            min. module -
            grinding wheel turining speeds 1 - 3000 U/min
            grinding wheel size 146 - 546 mm
            max. workpiece diameter 1524 mm
            Control FANUC 18 MB
            w-axis 27,69 mm
            z-axis 88,9 - 698,5 mm
            U-axis 50,8 - 546,1 mm
            w-axis 432 mm/min
            z-axis 3632 mm/min
            b-axis 2,5 °/sec
            weight of the machine ca. 17,5 t
            dimensions of the machine ca. 4,4 x 3,98 x 3,7 m
            Description :
            2000 retrofitted/modernized by Gleason with new CNC, Elektric, Drives/motors,
            Geometrie etc.
            Gleason Curvic Coupling Grinding Machines are high-speed large bore spindle
            machines for grinding curvic teeth in face couplings. A fully-automatic
            grinding cycle enables the production of extremely accurate and uniform
            couplings at high production rates.
            Couplings are roughed and finished from a solid blank in one machine setup.
            - CNC Control FANUC 18MB
            - CNC Indexer

            - Maximum Full Depth 9.5 mm
            - Maximum Diameter-Part 1,524 mm
            - Maximum Diameter-Coupling 914 mm
            - Maximum Shaft Diameter 304.8 mm
            - Maximum Shaft Length from Work Spindle Face(Longer Shafts Permissible based
            on Arbor Distance) 1397 mm
            - Index Range 1 -200
            - Work Spindle Diameter of Taper at Large End 586 mm
            - Work Spindle Taper per Foot 38 mm
            - Work Spindle Depth of Taper 16.5 mm
            - Work Spindle Diameter of Straight Bore (Front) 584 mm
            - Work Spindle Depth of Straight Bore 752 mm
            - Work Spindle Diameter (Rear) 311 mm
            - Axial Wheel Advance for Wheel Wear 50.8 mm
          Datasheet
          Request / Contact
          б / у Зуборезные станки Шлифовальный станок с коническим зубчатым колесом GLEASON 120 / 888 W


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com

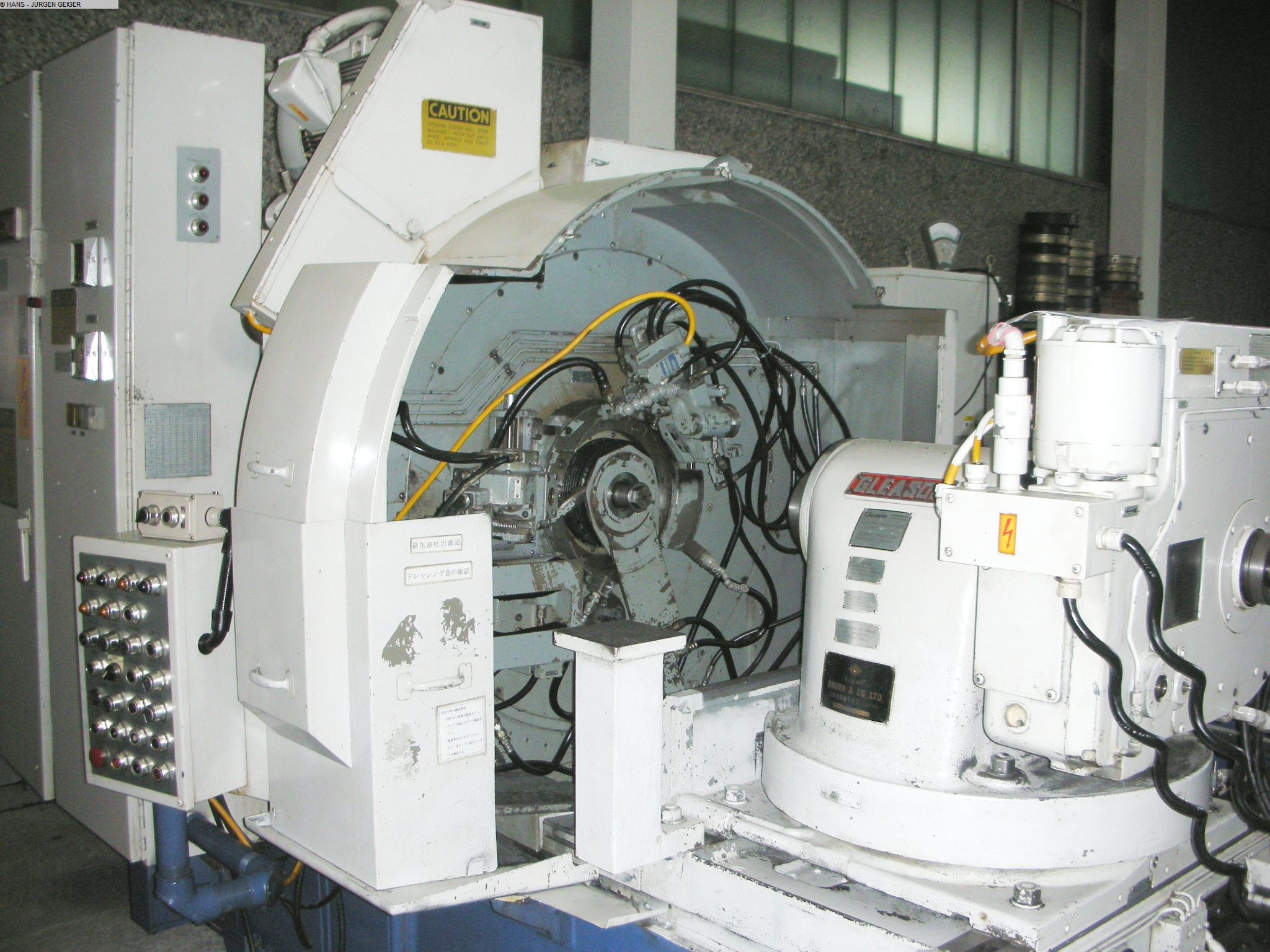

          #1049-304112 · Bevel Gear Grinding Machine

          GLEASON - 120 / 888 W - - 1980 -

          Technical details
          max. wheel diameter 1010 mm︱gear width 0 mm︱max. module ︱min. module ︱total power requirement 15 kW︱weight of the machine ca. 9,5 t︱dimensions of the machine ca. m︱
          Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * Automatic roughing and finishing process via pre-settable counter and built-in feed cam. * Counter for number of teeth. * Counter for number of dressing cycles. * 2 built-on dressing units with three dressing diamonds for radius dressing, side dressing and wheel end dressing. * Built-on index plate for 48 teeth. * Separate coolant device with band filter. * Separate hydraulic unit. * Separate TRION oil mist exhaust. * Various small parts.
            max. wheel diameter 1010 mm
            total power requirement 15 kW
            weight of the machine ca. 9,5 t
            Description :
            Max. depth of tooth 10 mm
            Max. workpiece Ø (for clearance) 1,010 mm
            Max. external Ø of coupling 610 mm

            Sliding base withdraw 216 mm
            Max. distance from grinding wheel to workpiece nose 90 - 430 mm
            Max. weight of workpiece, including clamp 500 kg

            No. of teeth 32 to 150

            Grinding wheel Ø, approx 152 - 320 mm
            Grinding wheel speeds, infinitely variable 0 - 3,600 rpm

            Work spindle bore 60 mm

            Total electrical load, approx. 15 kW - 380 V - 50 Hz
            Weight, approx. 9,500 kg

            Accessories / Special Features
            * Automatic roughing and finishing process via pre-settable counter and
            built-in feed cam.
            * Counter for number of teeth.
            * Counter for number of dressing cycles.
            * 2 built-on dressing units with three dressing diamonds for radius dressing,
            side dressing and wheel end dressing.
            * Built-on index plate for 48 teeth.
            * Separate coolant device with band filter.
            * Separate hydraulic unit.
            * Separate TRION oil mist exhaust.
            * Various small parts.
          Datasheet
          Request / Contact
