          Eccentric Press - Single Column

          Machinelist: Eccentric Press - Single Column

          Eccentric Press - Single Column

          used Presses Eccentric Press - Single Column ZEULENRODA PED 63/2

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-981 · Eccentric Press - Single Column

          ZEULENRODA - PED 63/2 - - unbekannt -

          Technical details
          pressure 63 t︱throat 315 mm︱stroke 16 - 125 mm︱max. distance table - ram 417 mm︱ram adjustment 70 mm︱no. of strokes 80 Hub/min︱table surface area 800 x 630 mm︱ram surface 500 x 400 mm︱total power requirement 6 kW︱weight of the machine ca. 5 t︱dimensions of the machine ca. 1,5 x 2,2 x 2,75 m︱
            pressure 63 t
            throat 315 mm
            stroke 16 - 125 mm
            max. distance table - ram 417 mm
            ram adjustment 70 mm
            no. of strokes 80 Hub/min
            table surface area 800 x 630 mm
            ram surface 500 x 400 mm
            total power requirement 6 kW
            weight of the machine ca. 5 t
            dimensions of the machine ca. 1,5 x 2,2 x 2,75 m


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column ERFURT PEE I 400

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-970 · Eccentric Press - Single Column

          ERFURT - PEE I 400 - - unbekannt -

          Technical details
          pressure 400 t︱throat 400 mm︱stroke 40 - 140 mm︱number of strokes - idle run 32 min-1︱ram adjustment 125 mm︱table surface area 1250 x 750 mm︱dayligth min/max 450/590 mm︱total power requirement 31,5 kW︱weight of the machine ca. 23 t︱Overall size 3,7 x 1,7 x 3,9 mm︱
            pressure 400 t
            throat 400 mm
            stroke 40 - 140 mm
            number of strokes - idle run 32 min-1
            ram adjustment 125 mm
            table surface area 1250 x 750 mm
            dayligth min/max 450/590 mm
            total power requirement 31,5 kW
            weight of the machine ca. 23 t
            Overall size 3,7 x 1,7 x 3,9 mm


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column AMBOLD EERH 100

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-984 · Eccentric Press - Single Column

          AMBOLD - EERH 100 - - unbekannt -

          Technical details
          pressure 100 t︱throat 350 mm︱stroke 20 - 120 mm︱table size 1100 x 700 mm︱ram head dimension 750 x 450 mm︱ram adjustment max. 90 mm︱no. of strokes 70 Hub/min︱strokes - infinitely variable 20 - 120 Hub/min︱daylight, max. stroke above - ram adjustment above 500 mm︱hole in the table 400 x 300 mm︱hole in bolster plate 220 x 180 mm︱Breakthrough in column back 450 x 300 mm︱total power requirement 11 kW︱weight of the machine ca. 11,8 t︱dimensions of the machine ca. 2,1 x 1,3 x 2,8 m︱
            pressure 100 t
            throat 350 mm
            stroke 20 - 120 mm
            table size 1100 x 700 mm
            ram head dimension 750 x 450 mm
            ram adjustment max. 90 mm
            no. of strokes 70 Hub/min
            strokes - infinitely variable 20 - 120 Hub/min
            daylight, max. stroke above - ra. 500 mm
            hole in the table 400 x 300 mm
            hole in bolster plate 220 x 180 mm
            Breakthrough in column back 450 x 300 mm
            total power requirement 11 kW
            weight of the machine ca. 11,8 t
            dimensions of the machine ca. 2,1 x 1,3 x 2,8 m


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column EBU E 125 FR

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15584 · Eccentric Press - Single Column

          EBU - E 125 FR - - Umbau 2011 -

          Technical details
          pressure 125 t︱throat 350 mm︱stroke 20-140 mm︱no. of strokes 50 Hub/min︱ram - range of adjustment 80 mm︱table surface area 1000x650 mm︱ram surface 550x330 mm︱hole in the table Ø 200 mm︱table height 900 mm︱tool hole in ram Ø 50 mm︱weight of the machine ca. 12 t︱dimensions of the machine ca. BxTxH 1500x2000x2700 mm︱
            pressure 125 t
            throat 350 mm
            stroke 20-140 mm
            no. of strokes 50 Hub/min
            ram - range of adjustment 80 mm
            table surface area 1000x650 mm
            ram surface 550x330 mm
            hole in the table Ø 200 mm
            table height 900 mm
            tool hole in ram Ø 50 mm
            weight of the machine ca. 12 t
            dimensions of the machine ca. BxTxH 1500x2000x2700 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column AMBOLD PEEV 55.4

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-287 · Eccentric Press - Single Column

          AMBOLD - PEEV 55.4 - - Neu -

          Technical details
          pressure 55 t︱throat 250 mm︱stroke 10-90 mm︱table-size 640 x 495 mm︱no. of strokes 120 Hub/min︱ram adjustment 55 mm︱ram surface 290 x 210 mm︱ram hole 40 H7 mm︱hole in the table 220 x 190 mm︱T-slots 22 ︱clamping plate 620 x 485 x 65 mm︱total power requirement 4,5 kW︱weight of the machine ca. 3,4 t︱dimensions of the machine ca. 1,5 x 1,2 x 2,2 m︱
            pressure 55 t
            throat 250 mm
            stroke 10-90 mm
            table-size 640 x 495 mm
            no. of strokes 120 Hub/min
            ram adjustment 55 mm
            ram surface 290 x 210 mm
            ram hole 40 H7 mm
            hole in the table 220 x 190 mm
            T-slots 22
            clamping plate 620 x 485 x 65 mm
            total power requirement 4,5 kW
            weight of the machine ca. 3,4 t
            dimensions of the machine ca. 1,5 x 1,2 x 2,2 m


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column AMBOLD PEEV 55.3

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-286 · Eccentric Press - Single Column

          AMBOLD - PEEV 55.3 - - Neu -

          Technical details
          pressure 55 t︱throat 250 mm︱stroke 10-90 mm︱table-size 640 x 495 mm︱no. of strokes 120 Hub/min︱ram adjustment 55 mm︱ram surface 290 x 210 mm︱ram hole 40 H7 mm︱hole in the table 220 x 190 mm︱T-slots 22 ︱clamping plate 620 x 485 x 65 mm︱total power requirement 4,5 kW︱weight of the machine ca. 3,4 t︱dimensions of the machine ca. 1,5 x 1,2 x 2,2 m︱
            pressure 55 t
            throat 250 mm
            stroke 10-90 mm
            table-size 640 x 495 mm
            no. of strokes 120 Hub/min
            ram adjustment 55 mm
            ram surface 290 x 210 mm
            ram hole 40 H7 mm
            hole in the table 220 x 190 mm
            T-slots 22
            clamping plate 620 x 485 x 65 mm
            total power requirement 4,5 kW
            weight of the machine ca. 3,4 t
            dimensions of the machine ca. 1,5 x 1,2 x 2,2 m


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column AMBOLD PEEV 25.2

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-251 · Eccentric Press - Single Column

          AMBOLD - PEEV 25.2 - - GÜ 2022 -

          Technical details
          pressure 25 t︱throat 200 mm︱stroke 4 - 80 mm︱table surface area 520 x 400 mm︱no. of strokes 160 Hub/min︱force Dauerlauf 1765 J ︱dayligth 302 max mm︱dayligth 100 min mm︱adjustment of stroke 8-84 mm︱ram adjustment 55 mm︱ram surface 185 x 180 mm︱ram hole 40 H7 mm︱force 3530 J ︱hole in the table 210 x 170 mm︱width of T-slots 22 mm︱connected load 3,5 kW︱rated current 9 ︱frequency 50 Hz︱voltage 380 V︱weight of the machine ca. 2700 kg︱
            pressure 25 t
            throat 200 mm
            stroke 4 - 80 mm
            table surface area 520 x 400 mm
            no. of strokes 160 Hub/min
            force Dauerlauf 1765 J
            dayligth 302 max mm
            dayligth 100 min mm
            adjustment of stroke 8-84 mm
            ram adjustment 55 mm
            ram surface 185 x 180 mm
            ram hole 40 H7 mm
            force 3530 J
            hole in the table 210 x 170 mm
            width of T-slots 22 mm
            connected load 3,5 kW
            rated current 9
            frequency 50 Hz
            voltage 380 V
            weight of the machine ca. 2700 kg


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column AMBOLD PEEV 40.2

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-255 · Eccentric Press - Single Column

          AMBOLD - PEEV 40.2 - - GÜ 2020 -

          Technical details
          pressure 40 t︱throat 225 mm︱stroke 8 - 84 mm︱table surface area 580 x 450 mm︱ram adjustment 55 mm︱no. of strokes 130 Hub/min︱ram surface 185 x 180 mm︱ram hole 40 mm︱hole in the table 210 x 450 mm︱clamping plate 570 x 450 mm︱total power requirement 3,5 kW︱weight of the machine ca. 2,7 t︱dimensions of the machine ca. 1,4 x 1,1 x 2,1 m︱
            pressure 40 t
            throat 225 mm
            stroke 8 - 84 mm
            table surface area 580 x 450 mm
            ram adjustment 55 mm
            no. of strokes 130 Hub/min
            ram surface 185 x 180 mm
            ram hole 40 mm
            hole in the table 210 x 450 mm
            clamping plate 570 x 450 mm
            total power requirement 3,5 kW
            weight of the machine ca. 2,7 t
            dimensions of the machine ca. 1,4 x 1,1 x 2,1 m


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 20 CE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15666 · Eccentric Press - Single Column

          SANGIACOMO - T 20 CE - - 2023 -

          Technical details
          pressure 20 t︱throat 155 mm︱stroke 6-60 mm︱no. of strokes 84-210 Hub/min︱ram - range of adjustment 50 mm︱ 300 mm︱table surface area 300x450 mm︱table height 840 mm︱hole in the table Ø 90 mm︱ram surface 190x278 mm︱tool hole in ram Ø 25 mm︱total power requirement 1,5 kW︱weight of the machine ca. 1,0 t︱dimensions of the machine ca. BxTxH 1100x1100x1900 mm︱
            pressure 20 t
            throat 155 mm
            stroke 6-60 mm
            no. of strokes 84-210 Hub/min
            ram - range of adjustment 50 mm
            300 mm
            table surface area 300x450 mm
            table height 840 mm
            hole in the table Ø 90 mm
            ram surface 190x278 mm
            tool hole in ram Ø 25 mm
            total power requirement 1,5 kW
            weight of the machine ca. 1,0 t
            dimensions of the machine ca. BxTxH 1100x1100x1900 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column EBU CPM 80

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15636 · Eccentric Press - Single Column

          EBU - CPM 80 - - 2023 -

          Technical details
          pressure 80 t︱throat 320 mm︱stroke 8-140 mm︱no. of strokes 30-120 Hub/min︱ram - range of adjustment 100 mm︱table surface area 900x620 mm︱ram surface 600x320 mm︱hole in the table 315x180 mm︱table height 870 mm︱tool hole in ram Ø 40 mm︱weight of the machine ca. 7,3 t︱dimensions of the machine ca. BxTxH 1500x2000x2750 mm︱
            pressure 80 t
            throat 320 mm
            stroke 8-140 mm
            no. of strokes 30-120 Hub/min
            ram - range of adjustment 100 mm
            table surface area 900x620 mm
            ram surface 600x320 mm
            hole in the table 315x180 mm
            table height 870 mm
            tool hole in ram Ø 40 mm
            weight of the machine ca. 7,3 t
            dimensions of the machine ca. BxTxH 1500x2000x2750 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 30 CE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15668 · Eccentric Press - Single Column

          SANGIACOMO - T 30 CE - - 2023 -

          Technical details
          pressure 30 t︱throat 180 mm︱stroke 8-76 mm︱no. of strokes 80-200 Hub/min︱ram - range of adjustment 60 mm︱table surface area 360x580 mm︱table height 840 mm︱hole in the table Ø 110 mm︱ram surface 250x350 mm︱tool hole in ram Ø 40 mm︱total power requirement 3 kW︱weight of the machine ca. 1,8 t︱dimensions of the machine ca. BxTxH 1350x1200x2100 mm︱
            pressure 30 t
            throat 180 mm
            stroke 8-76 mm
            no. of strokes 80-200 Hub/min
            ram - range of adjustment 60 mm
            table surface area 360x580 mm
            table height 840 mm
            hole in the table Ø 110 mm
            ram surface 250x350 mm
            tool hole in ram Ø 40 mm
            total power requirement 3 kW
            weight of the machine ca. 1,8 t
            dimensions of the machine ca. BxTxH 1350x1200x2100 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 20 CE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15667 · Eccentric Press - Single Column

          SANGIACOMO - T 20 CE - - 2023 -

          Technical details
          pressure 20 t︱throat 155 mm︱stroke 6-60 mm︱no. of strokes 84-210 Hub/min︱ram - range of adjustment 50 mm︱ 300 mm︱table surface area 300x450 mm︱table height 840 mm︱hole in the table Ø 90 mm︱ram surface 190x278 mm︱tool hole in ram Ø 25 mm︱total power requirement 1,5 kW︱weight of the machine ca. 1,0 t︱dimensions of the machine ca. BxTxH 1100x1100x1900 mm︱
            pressure 20 t
            throat 155 mm
            stroke 6-60 mm
            no. of strokes 84-210 Hub/min
            ram - range of adjustment 50 mm
            300 mm
            table surface area 300x450 mm
            table height 840 mm
            hole in the table Ø 90 mm
            ram surface 190x278 mm
            tool hole in ram Ø 25 mm
            total power requirement 1,5 kW
            weight of the machine ca. 1,0 t
            dimensions of the machine ca. BxTxH 1100x1100x1900 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 30 CE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15669 · Eccentric Press - Single Column

          SANGIACOMO - T 30 CE - - 2023 -

          Technical details
          pressure 30 t︱throat 180 mm︱stroke 8-76 mm︱no. of strokes 80-200 Hub/min︱ram - range of adjustment 60 mm︱table surface area 360x580 mm︱table height 840 mm︱hole in the table Ø 110 mm︱ram surface 250x350 mm︱tool hole in ram Ø 40 mm︱total power requirement 3 kW︱weight of the machine ca. 1,8 t︱dimensions of the machine ca. BxTxH 1350x1200x2100 mm︱
            pressure 30 t
            throat 180 mm
            stroke 8-76 mm
            no. of strokes 80-200 Hub/min
            ram - range of adjustment 60 mm
            table surface area 360x580 mm
            table height 840 mm
            hole in the table Ø 110 mm
            ram surface 250x350 mm
            tool hole in ram Ø 40 mm
            total power requirement 3 kW
            weight of the machine ca. 1,8 t
            dimensions of the machine ca. BxTxH 1350x1200x2100 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T80 RCE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15672 · Eccentric Press - Single Column

          SANGIACOMO - T80 RCE - - 2023 -

          Technical details
          pressure 80 t︱throat 295 mm︱stroke 14-150 mm︱no. of strokes 34-85 Hub/min︱ram - range of adjustment 85 mm︱table surface area 900x580 mm︱table height 850 mm︱hole in the table Ø180 mm︱ram surface 560x380 mm︱tool hole in ram Ø 50 mm︱total power requirement 7,5 kW︱weight of the machine ca. 5,6 t︱dimensions of the machine ca. BxTxH 1800x1850x3000 mm︱
            pressure 80 t
            throat 295 mm
            stroke 14-150 mm
            no. of strokes 34-85 Hub/min
            ram - range of adjustment 85 mm
            table surface area 900x580 mm
            table height 850 mm
            hole in the table Ø180 mm
            ram surface 560x380 mm
            tool hole in ram Ø 50 mm
            total power requirement 7,5 kW
            weight of the machine ca. 5,6 t
            dimensions of the machine ca. BxTxH 1800x1850x3000 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 50 RCE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15671 · Eccentric Press - Single Column

          SANGIACOMO - T 50 RCE - - 2023 -

          Technical details
          pressure 50 t︱throat 230 mm︱stroke 12-110 mm︱no. of strokes 40-100 Hub/min︱ram - range of adjustment 70 mm︱table surface area 740x440 mm︱table height 840 mm︱hole in the table Ø 140 mm︱ram surface 460x300 mm︱tool hole in ram Ø 45 mm︱total power requirement 4 kW︱weight of the machine ca. 3,4 t︱dimensions of the machine ca. BxTxH 1500x2500x2510 mm︱
            pressure 50 t
            throat 230 mm
            stroke 12-110 mm
            no. of strokes 40-100 Hub/min
            ram - range of adjustment 70 mm
            table surface area 740x440 mm
            table height 840 mm
            hole in the table Ø 140 mm
            ram surface 460x300 mm
            tool hole in ram Ø 45 mm
            total power requirement 4 kW
            weight of the machine ca. 3,4 t
            dimensions of the machine ca. BxTxH 1500x2500x2510 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T 40 CE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15670 · Eccentric Press - Single Column

          SANGIACOMO - T 40 CE - - 2023 -

          Technical details
          pressure 40 t︱throat 195 mm︱stroke 8-78 mm︱no. of strokes 76-190 Hub/min︱ram - range of adjustment 60 mm︱table surface area 650x380 mm︱table height 840 mm︱hole in the table Ø 110 mm︱ram surface 250x350 mm︱tool hole in ram Ø 40 mm︱total power requirement 3 kW︱weight of the machine ca. 2,2 t︱dimensions of the machine ca. BxTxH 1450x1220x2110 mm︱
            pressure 40 t
            throat 195 mm
            stroke 8-78 mm
            no. of strokes 76-190 Hub/min
            ram - range of adjustment 60 mm
            table surface area 650x380 mm
            table height 840 mm
            hole in the table Ø 110 mm
            ram surface 250x350 mm
            tool hole in ram Ø 40 mm
            total power requirement 3 kW
            weight of the machine ca. 2,2 t
            dimensions of the machine ca. BxTxH 1450x1220x2110 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column BEUTLER CBL 25

          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland
          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-233019 · Eccentric Press - Single Column

          BEUTLER - CBL 25 - - 2021 - Pilz PNOZ

          Technical details
          pressure 25 t︱stroke 5 - 75 mm︱no. of strokes 150 /min︱throat 180 mm︱passage to the back 230 mm︱dayligth 345 mm︱table surface area 465 x 360 mm︱hole in the table 110 / 140 mm︱table height over floor 920 mm︱ram surface 220 x 160 mm︱ram adjustment 50 mm︱power requirement 1,5 kW︱Weight 1,5 t︱dimensions of the machine ca. 1,2 x 1,2 x 2,1 m x m x m︱
          permitted for manual loading according to the CE-norm with motor, pneumatic clutch/brake combination, mechanical deblocking device in ram, manual stroke adjustment, manual ram adjustment, inclineable, motoric lubrication, two-hand and foot operation
            pressure 25 t
            stroke 5 - 75 mm
            no. of strokes 150 /min
            throat 180 mm
            passage to the back 230 mm
            dayligth 345 mm
            table surface area 465 x 360 mm
            hole in the table 110 / 140 mm
            table height over floor 920 mm
            ram surface 220 x 160 mm
            ram adjustment 50 mm
            power requirement 1,5 kW
            Weight 1,5 t
            dimensions of the machine ca. 1,2 x 1,2 x 2,1 m x m x m
            Description :
            permitted for manual loading according to the CE-norm
            with motor, pneumatic clutch/brake combination, mechanical deblocking device in ram, manual stroke adjustment, manual ram adjustment, inclineable, motoric lubrication, two-hand and foot operation


        • VÖGTLE SERVICE GMBH
        • Friedhofstr. 115
        • 73054 Eislingen
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column BEUTLER CBL 40

          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland
          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-233018 · Eccentric Press - Single Column

          BEUTLER - CBL 40 - - 2021 - Pilz PNOZ

          Technical details
          pressure 40 t︱stroke 5 - 100 mm︱no. of strokes 140 /min︱throat 220 mm︱passage to the back 270 mm︱dayligth 340 mm︱table surface area 650 x 480 mm︱hole in the table 120 / 150 mm︱table height over floor 960 mm︱ram surface 370 x 300 mm︱ram adjustment 70 mm︱power requirement 2,2 kW︱Weight 3,0 t︱dimensions of the machine ca. 1,3 x 1,5 x 2,45 m x m x m︱
          permitted for manual loading according to the CE-norm with motor, pneumatic clutch/brake combination, hydraulic deblocking device in ram, manual stroke adjustment, manual ram adjustment, pneumatic counterbalance in ram, fix table, motoric centralized lubrication, two-hand and foot operation
            pressure 40 t
            stroke 5 - 100 mm
            no. of strokes 140 /min
            throat 220 mm
            passage to the back 270 mm
            dayligth 340 mm
            table surface area 650 x 480 mm
            hole in the table 120 / 150 mm
            table height over floor 960 mm
            ram surface 370 x 300 mm
            ram adjustment 70 mm
            power requirement 2,2 kW
            Weight 3,0 t
            dimensions of the machine ca. 1,3 x 1,5 x 2,45 m x m x m
            Description :
            permitted for manual loading according to the CE-norm
            with motor, pneumatic clutch/brake combination, hydraulic deblocking device in ram, manual stroke adjustment, manual ram adjustment, pneumatic counterbalance in ram, fix table, motoric centralized lubrication, two-hand and foot operation


        • VÖGTLE SERVICE GMBH
        • Friedhofstr. 115
        • 73054 Eislingen
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SCHULER PDR 200/450

          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland
          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-233008 · Eccentric Press - Single Column

          SCHULER - PDR 200/450 - - 2009 - Siemens S 7

          Technical details
          pressure 200 t︱stroke 30 - 140 mm︱no. of strokes 40 /min︱throat 450 mm︱passage to the back 425 mm︱dayligth 630 mm︱table surface area 1020 x 880 mm︱hole in the table 540 / 500 mm︱table height over floor 800 mm︱ram surface 800 x 500 mm︱ram adjustment 125 mm︱power requirement 15,0 kW︱Weight 13,8 t︱dimensions of the machine ca. 2,2 x 2,35 x 3,43 m x m x m︱
          year of manufacture 1970 2009: modernization of electrical control (Siemens S 7) and modification of clutch-brake combination Ortlinghaus permitted for manual loading according to the German Safety Regulations (UVV) with motor, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, pneumatic counterbalance in ram, fix table, motoric centralized lubrication, two-hand operation
            pressure 200 t
            stroke 30 - 140 mm
            no. of strokes 40 /min
            throat 450 mm
            passage to the back 425 mm
            dayligth 630 mm
            table surface area 1020 x 880 mm
            hole in the table 540 / 500 mm
            table height over floor 800 mm
            ram surface 800 x 500 mm
            ram adjustment 125 mm
            power requirement 15,0 kW
            Weight 13,8 t
            dimensions of the machine ca. 2,2 x 2,35 x 3,43 m x m x m
            Description :
            year of manufacture 1970
            2009: modernization of electrical control (Siemens S 7) and modification of clutch-brake combination Ortlinghaus
            permitted for manual loading according to the German Safety Regulations (UVV)
            with motor, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, pneumatic counterbalance in ram, fix table, motoric centralized lubrication, two-hand operation


        • VÖGTLE SERVICE GMBH
        • Friedhofstr. 115
        • 73054 Eislingen
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column EBU H 80 RiV

          • Ambold Pressen GmbH
          • Sommeritzer Straße 43
          • 04626 Schmölln
          • Deutschland
          • +49 (0)3449183314
            +49 (0)3449123492
          • info@ambold-pressen.de
            www.ambold-pressen.de
          #1010-963 · Eccentric Press - Single Column

          EBU - H 80 RiV - - 2008 -

          Technical details
          pressure 80 t︱throat 305 mm︱stroke 8 - 140 mm︱ram adjustment 100 mm︱no. of strokes 60 Hub/min︱table surface area 900 x 625 mm︱ram surface 600 x 280 mm︱daylight, max. stroke above - ram adjustment above 345 mm︱table height adjustment 240 mm︱ram hole Dm. 40 mm︱total power requirement 14 A︱weight of the machine ca. 7,6 t︱dimensions of the machine ca. BxTxH 1,38 x 2,1 x 2,56 m︱
          - hydraulic clutch - belt transmission - mechanical overload protection (breaking plate) - connecting rod clamping manually - ram height adjustment manually - stroke adjustment manually - OT correction manually - table height adjustment manually - automatic central lubrication, made by Beka - clamping plate Machine is technically checked in our company. - Current UVV test with braking time measurement
            pressure 80 t
            throat 305 mm
            stroke 8 - 140 mm
            ram adjustment 100 mm
            no. of strokes 60 Hub/min
            table surface area 900 x 625 mm
            ram surface 600 x 280 mm
            daylight, max. stroke above - ra. 345 mm
            table height adjustment 240 mm
            ram hole Dm. 40 mm
            total power requirement 14 A
            weight of the machine ca. 7,6 t
            dimensions of the machine ca. BxTxH 1,38 x 2,1 x 2,56 m
            Description :
            - hydraulic clutch
            - belt transmission
            - mechanical overload protection (breaking plate)
            - connecting rod clamping manually
            - ram height adjustment manually
            - stroke adjustment manually
            - OT correction manually
            - table height adjustment manually
            - automatic central lubrication, made by Beka
            - clamping plate

            Machine is technically checked in our company.

            - Current UVV test with braking time measurement


        • Ambold Pressen GmbH
        • Sommeritzer Straße 43
        • 04626 Schmölln
        • Deutschland

          • Datasheet
          Request / Contact

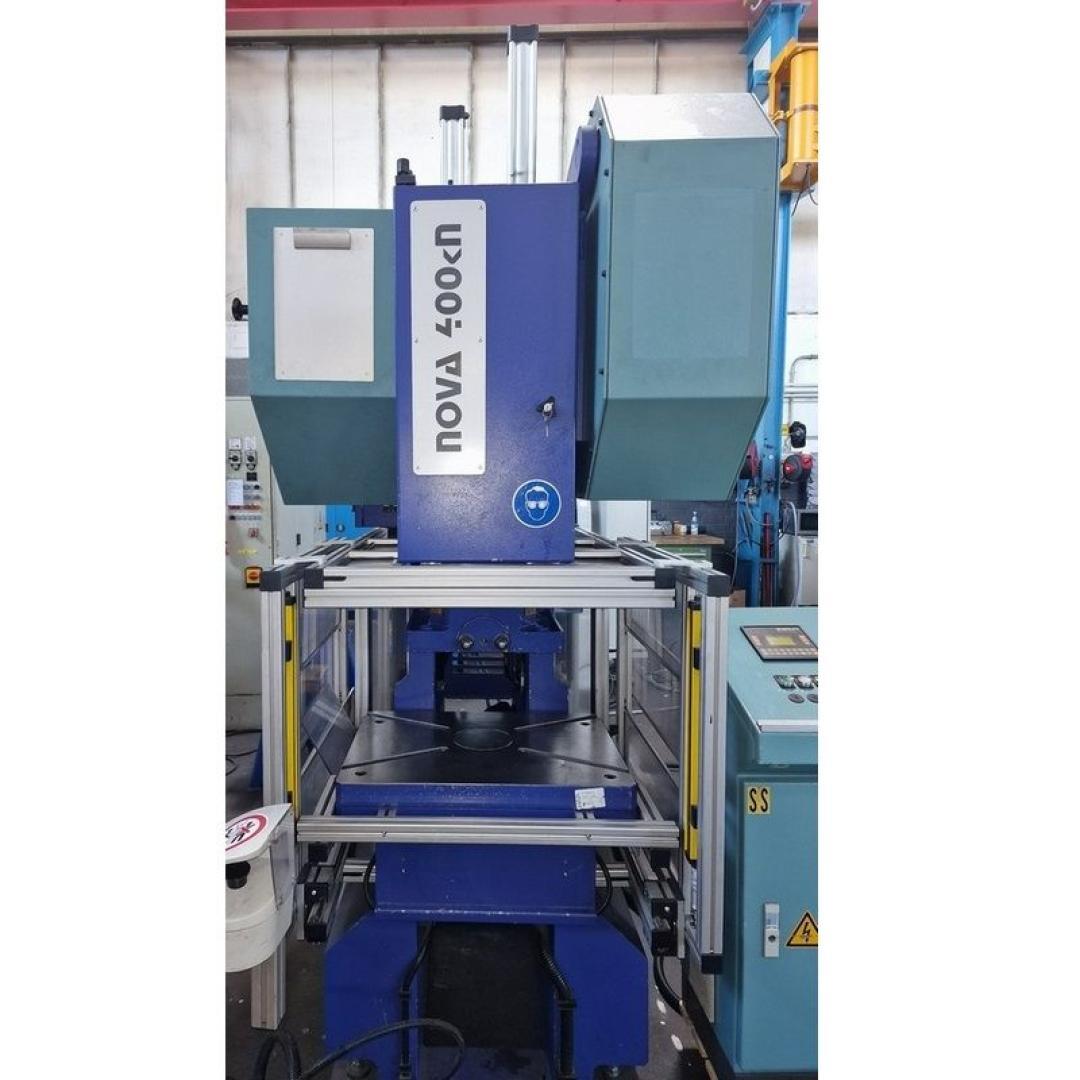

          used Presses Eccentric Press - Single Column BEUTLER NOVA C 400 kN

          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland
          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-233010 · Eccentric Press - Single Column

          BEUTLER - NOVA C 400 kN - - 2005 - Dataplus 200

          Technical details
          pressure 40 t︱stroke 12 - 100 mm︱no. of strokes 60 - 150 /min︱throat 220 mm︱passage to the back 270 mm︱dayligth 340 mm︱table surface area 650 x 480 mm︱hole in the table 150 mm︱table height over floor 750 mm︱table adjustable mm︱ram surface 370 x 300 mm︱ram adjustment 100 mm︱power requirement 4,0 kW︱Weight 3,20 t︱dimensions of the machine ca. 1,2 x 1,6 x 2,6 m x m x m︱
          permitted for manual loading according to the CE-norm with infinitely variable drive, light guard (make Sick), pneumatic clutch/brake combination, hydraulic overload protection in ram, manual stroke adjustment, manual ram adjustment, pneumatic counterbalance in ram, fix table, centralized lubrication, bolster plate, two-hand and foot operation
            pressure 40 t
            stroke 12 - 100 mm
            no. of strokes 60 - 150 /min
            throat 220 mm
            passage to the back 270 mm
            dayligth 340 mm
            table surface area 650 x 480 mm
            hole in the table 150 mm
            table height over floor 750 mm
            ram surface 370 x 300 mm
            ram adjustment 100 mm
            power requirement 4,0 kW
            Weight 3,20 t
            dimensions of the machine ca. 1,2 x 1,6 x 2,6 m x m x m
            Description :
            permitted for manual loading according to the CE-norm
            with infinitely variable drive, light guard (make Sick), pneumatic clutch/brake combination, hydraulic overload protection in ram, manual stroke adjustment, manual ram adjustment, pneumatic counterbalance in ram, fix table, centralized lubrication, bolster plate, two-hand and foot operation


        • VÖGTLE SERVICE GMBH
        • Friedhofstr. 115
        • 73054 Eislingen
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SANGIACOMO T130RCE

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15277 · Eccentric Press - Single Column

          SANGIACOMO - T130RCE - - 2002 -

          Technical details
          pressure 130 t︱throat 350 mm︱stroke 16-200 mm︱no. of strokes 55 Hub/min︱ram - range of adjustment 100 mm︱table surface area 1200x700 mm︱ram surface 730x530 mm︱hole in the table 300x210 mm︱table height 900 mm︱tool hole in ram Ø 50 mm︱weight of the machine ca. 8,0 t︱dimensions of the machine ca. BxTxH 1500x2200x3500 mm︱
            pressure 130 t
            throat 350 mm
            stroke 16-200 mm
            no. of strokes 55 Hub/min
            ram - range of adjustment 100 mm
            table surface area 1200x700 mm
            ram surface 730x530 mm
            hole in the table 300x210 mm
            table height 900 mm
            tool hole in ram Ø 50 mm
            weight of the machine ca. 8,0 t
            dimensions of the machine ca. BxTxH 1500x2200x3500 mm


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column SCHULER PDr C63-315

          • Maschinen Schwartpaul GmbH
          • Am Wasserwerk 1
          • 58840 Plettenberg
          • Deutschland
          • +49 (0)2391-95960
            +49 (0)2391-959620
          • info@maschinen-schwartpaul.de
            www.maschinen-schwartpaul.de
          #2020-15319 · Eccentric Press - Single Column

          SCHULER - PDr C63-315 - - 2002 -

          Technical details
          pressure 63 t︱throat 315 mm︱stroke 8-100 mm︱no. of strokes 140 Hub/min︱ram - range of adjustment 63 mm︱table surface area 1200x630 mm︱ram surface 800x315 mm︱hole in the table Ø 110 mm︱table height 820 mm︱tool hole in ram Ø 50 mm︱dayligth 335 mm︱total power requirement 7,5 kW︱weight of the machine ca. 5 t︱
            pressure 63 t
            throat 315 mm
            stroke 8-100 mm
            no. of strokes 140 Hub/min
            ram - range of adjustment 63 mm
            table surface area 1200x630 mm
            ram surface 800x315 mm
            hole in the table Ø 110 mm
            table height 820 mm
            tool hole in ram Ø 50 mm
            dayligth 335 mm
            total power requirement 7,5 kW
            weight of the machine ca. 5 t


        • Maschinen Schwartpaul GmbH
        • Am Wasserwerk 1
        • 58840 Plettenberg
        • Deutschland

          • Datasheet
          Request / Contact
          used Presses Eccentric Press - Single Column HENSEL EBU SKE 75 FU (UVV)

          • VÖGTLE SERVICE GMBH
          • Friedhofstr. 115
          • 73054 Eislingen
          • Deutschland
          • +49 71 61 99 73- 0
            +49 71 61 99 73- 13
          • Thomas.Ruckh@voegtle.de
            www.voegtle.de
          #1050-193029V · Eccentric Press - Single Column

          HENSEL - EBU SKE 75 FU (UVV) - - 2000 - konventionell

          Technical details
          pressure 075 t︱throat 295 mm︱stroke 16 - 140 mm︱Stroke rate 75 / min︱Distance table/ram, max. stroke up, adjustment up 450 mm︱Table surface area 800 x 595 mm︱Hole in the table 330 x 230 mm︱Table height above floor 745 mm︱Ram surface 470 x 180 mm︱Ram adjustment 80 mm︱Power capacity 5,5 kW︱Weight 5,0 t︱Dimensions (WxDxH) 1,5 x 2,5 x 2,5 m︱
          overhaul 2000 permitted for manual put-in according to the German Safety Regulations (UVV) with pneumatic clutch, mechanical overload protection in ram, two-hand operation press can be inspected in running condition in our warehouse
            pressure 075 t
            throat 295 mm
            stroke 16 - 140 mm
            Stroke rate 75 / min
            Distance table/ram, max. stroke . 450 mm
            Table surface area 800 x 595 mm
            Hole in the table 330 x 230 mm
            Table height above floor 745 mm
            Ram surface 470 x 180 mm
            Ram adjustment 80 mm
            Power capacity 5,5 kW
            Weight 5,0 t
            Dimensions (WxDxH) 1,5 x 2,5 x 2,5 m
            Description :
            overhaul 2000
            permitted for manual put-in according to the German Safety Regulations (UVV)
            with pneumatic clutch, mechanical overload protection in ram, two-hand operation
            press can be inspected in running condition in our warehouse


        • VÖGTLE SERVICE GMBH
        • Friedhofstr. 115
        • 73054 Eislingen
        • Deutschland

          • Datasheet
          Request / Contact
          •
          •
          • 1
          • 2
          • 3
          • 4
          • 5
          • 6
          •
          •
            •

          Get a single column eccentric press from LagerMaschinen
          The best deal on a single column eccentric press at LagerMaschinen

          Stamping is a blanket term for a wide variety of processes in sheet metal manufacturing. It includes forming bending blanking and much more. A single column eccentric press is a multi-functional tool that enables operators to perform a variety of stamping tasks using a single piece of equipment. Investing in a single column eccentric press is a smart decision as it is efficient in terms of both cost and output. Find used presses and other equipment quickly and easily at LagerMaschinen.

          Stamping is a crucial part of sheet metal production

          There are a number of processes involved in the shaping and cutting of sheet metal. Buying individual machines to perform each of these tasks is not only costly but also inefficient. The ideal solution to this problem is a single column eccentric press which can easily perform a large array of stamping processes. Whether you choose a mechanically or hydraulically operated single column eccentric press you will be impressed at the versatility of this functional machine.

          Shopping at LagerMaschinen is convenient and cost efficient

          Finding the right machine for your business can be a tiresome and daunting process. LagerMaschinen aims to take all the hassle out of shopping for machinery by offering users a simple and easy-to-use site for searching for the best in used equipment. Whether you are looking for a single column eccentric press or any other piece of machinery you can easily browse your options by price model or location from the comfort of your home or office.

          TOP Manufacturer:

          WEINGARTEN - EBU - SCHULER - HELMERDING - AMBOLD - BEUTLER - HENSEL - SANGIACOMO - MÜLLER - HEILBRONN -

          Компендиум
          Software
          Содержание подержанных машин
          Конфиденциальность
          Присоединяйтесь
          © 2000-2023, Logotech oHG · Программное обеспечение и Интернет-услуги - Все права защищены
